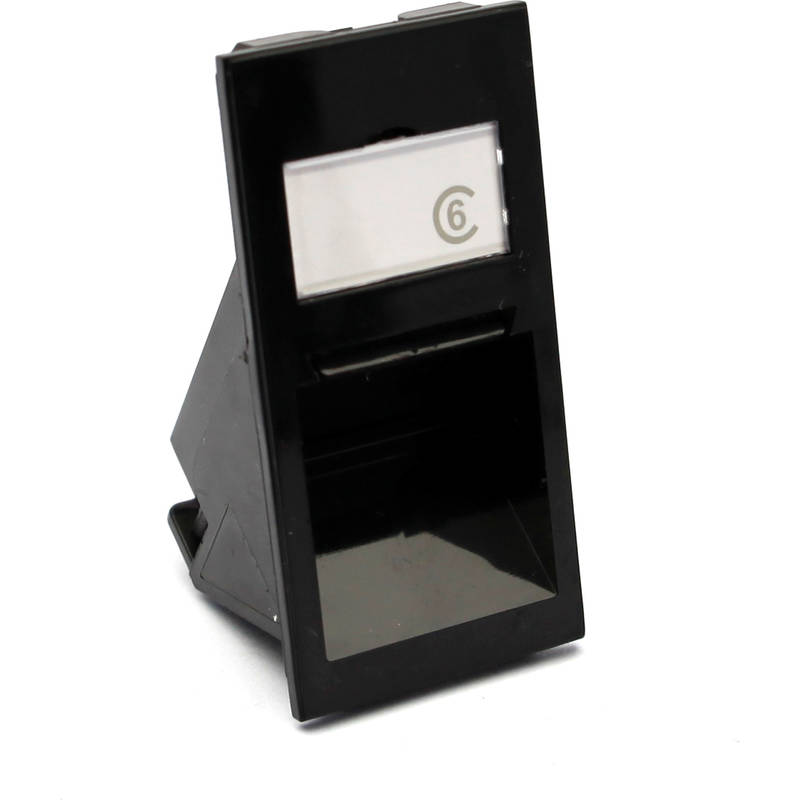

Excel Euromod Angled Shutter For Keystone Jack Black

Part Code: 100-175-BK

A range of mounting options are available for the Excel Keystone Tool‐less Jacks that allow them to be installed in a number of situations. This flexibility results in the ability to have the same jacks terminating the cable in the patch panel and at the outlet.

These shutters are available in the Euro Module size of 25 x 50 mm. They come with windows and labels fitted to complete the installation. Blanking plates available in half and single size are available in the Euro Module size to configure single or triple outlets.

  • Euromod size
  • Angled design optimises space whilst ensuring minimal stress to installed cables
  • Available in black/white
  • Compatible with a range of faceplates
  • Labelling field
Application Mounting cover data connector
Material Plastic
Colour Black
Ral-number (akin) 9011
Type of fastening Engage (snap)
Width of device 25 mm
Height of device 50 mm

Key Features

  • Application: Mounting cover data connector
  • Material: Plastic
  • Colour: Black
  • Ral-number (akin): 9011
  • Type of fastening: Engage (snap)
  • Width of device: 25 mm

Similar Products

This item is compatible with:
