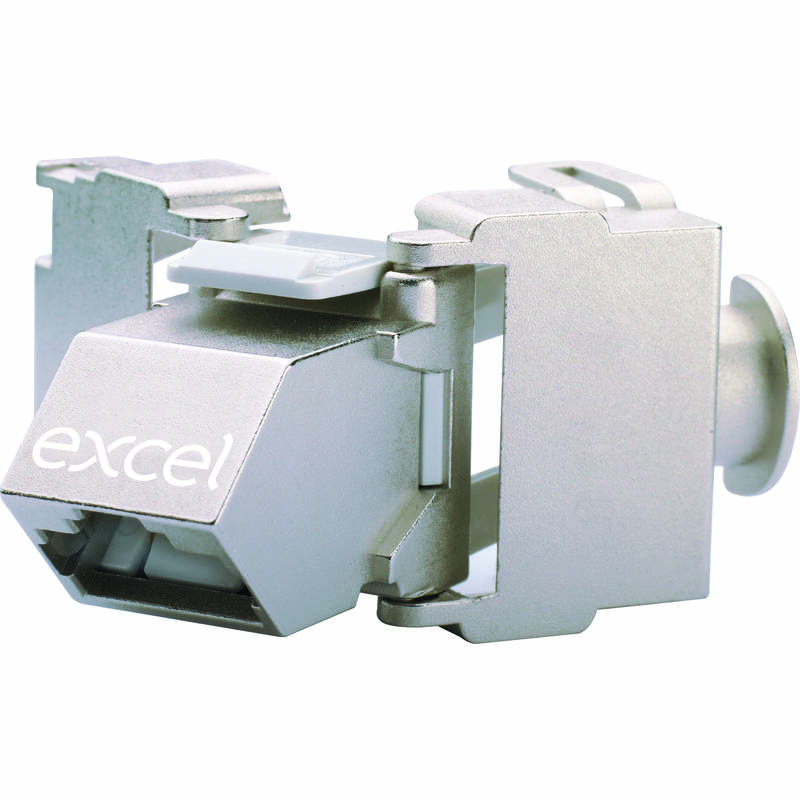

Excel Category 6A (STP) Screened Angled Keystone Toolless Jack Butterfly Style

Part Code: 100-185

Excel Category 6A Screened Angled Keystone Jack is a toolless termination RJ45 socket suitable for mounting in patch panels.

The angled design of the socket face makes this product ideal for high density frames. Traditional horizontal patch cable management bars can be removed or reduced in number as the leads follow a natural route to the left or right of the panel and the cabinets vertical management.

To the rear of the socket the design is exactly the same as the excel keystone range, enabling standard termination and cable dressing practices to be followed. The socket itself is housed in a high quality zinc die cast housing, which opens a the rear in a butterfly manner to reveal the IDC termination points. Once the conductors of the cable to be terminated are fed into a management cap the process is completed by snapping the 'butterfly wings' together with minimal, but firm pressure.

  • Screened
  • Suitable for use in 100-024 only
  • Supports 10 Gigabit Ethernet
  • Toolless termination design
Model Jack
Type of connector RJ45 8(8)
Shielded yes
Category 6A (IEC)
Requires termination tool no
Suitable for round cable yes
Suitable for flat cable no
Suitable for solid core yes
Colour Silver
Awg-range 22...26

Key Features

  • Model: Jack
  • Type of connector: RJ45 8(8)
  • Shielded: yes
  • Category: 6A (IEC)
  • Requires termination tool: no
  • Suitable for round cable: yes
