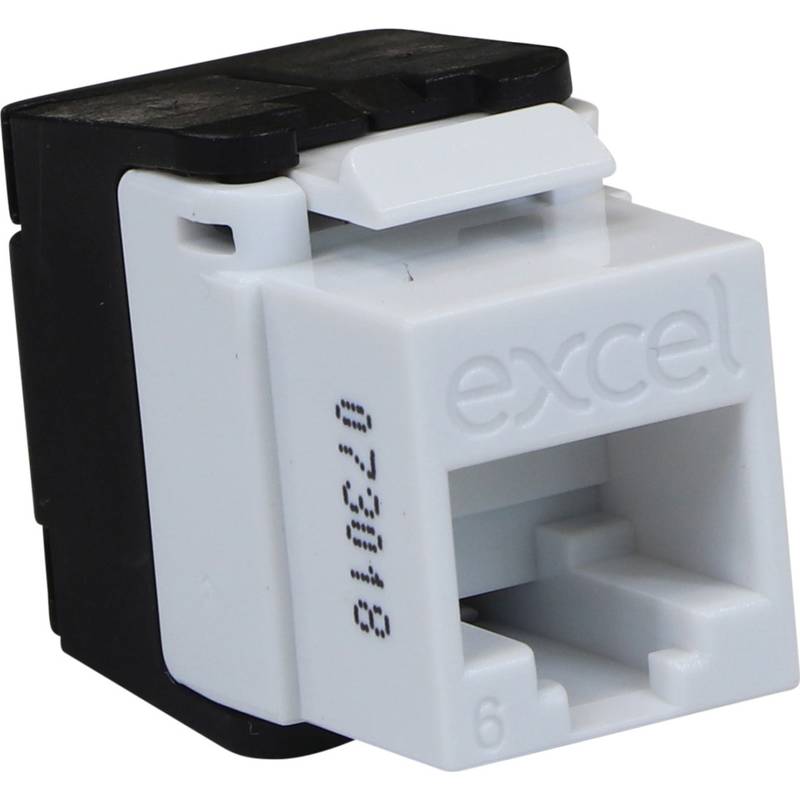

Excel Cat6 UTP Unscreened Low Profile Keystone Jack Toolless White

Part Code: 100-215-WT

100-215-WT Excel Cat6 UTP Unscreened Low Profile Keystone Jack Toolless White, available as part of our range of excel Cat6 keystone jacks for RJ45 network connections. The Excel Cat6 Low Profile Unscreened Keystone Jack, is a reduced size toolless termination RJ45 socket. The reduced size allows for multiple cable entry directions to be accommodated when this jack is mounted in a standard depth back box. This permits many mounting options including flush shutters at the outlet as well as more common angled shutter used with keystone jacks.

The low profile design allows this jack to fit in the Excel 0.5U 24 Port Patch Panel resulting in a maximum port density of 48 per 1U. The socket itself is housed in a high quality fire retardant plastic cast housing, which opens at the rear in a butterfly manner to reveal the IDC termination points.

Model Jack
Type of connector RJ45 8(8)
Shielded no
Category 6
Requires termination tool no
Suitable for round cable yes
Suitable for flat cable no
Suitable for solid core yes
Colour White
Awg-range 22...26

Key Features

  • ISO, EN & TIA compliant
  • Toolless termination design
  • Low profile design - 28mm overall depth
  • UL94V-0 fire retardant plastic
  • Supports Gigabit Ethernet
  • Delta 3rd party verified
  • CIBSE TM65 Embodied Carbon: 0.057 kg CO2e
