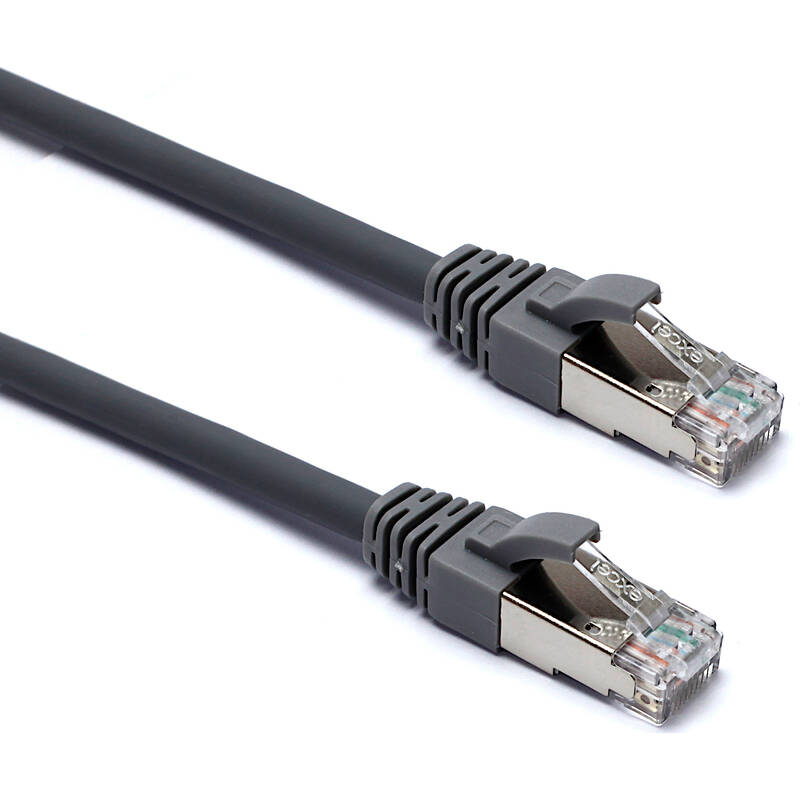

Excel Cat6A Patch Lead S/FTP Shielded LSOH Blade Booted 0.3 m Grey (10-Pack)
Part Code: 106-001
Excel Category 6A S/FTP patch leads are manufactured and tested to ISO 11801, EN 50173 & TIA/EIA 568 requirements for patch cord assemblies and provide optimum performance levels for structured cabling installations.
| Cable type | S/FTP |
| Category | 6A (IEC) |
| Length | 0.3 m |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Outer sheath colour | Grey |
| Strain relief boot | Moulded-on |
| Lockable | no |
| Strain relief boot colour | Grey |
| Flame retardant version | yes |
| Cable construction | 1x4 |
| Awg-size | 26 |
| Pin assignment | 1:1 |
Key Features
- Category 6A
- Screen braid outer with individual foil tape screen
- Backward compatible
- T568B wiring
- Blade style "slimline" moulded strain relief boot with clip protector
- LS0H outer sheath
- CIBSE TM65 Embodied Carbon: 1.776 kg CO2e
