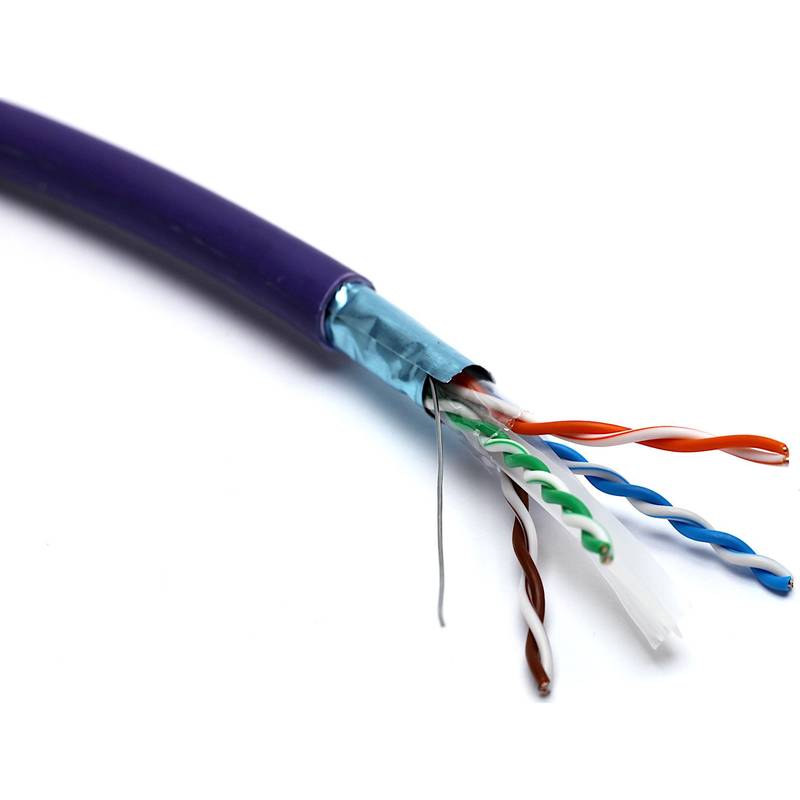

Excel Solid Cat6 Cable F/UTP LSOH CPR Euroclass B2ca 305m Reel Violet

Part Code: 190-076

Excel solid Cat6 ethernet cable F/UTP LSOH CPR Euroclass B2ca manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Cat 6 specifications, 305m or 500m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.

These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.

  • Cat6 Solid Copper Cable
  • F/UTP Overall Foil Screening
  • No Conductor Screening
  • Outer sheath colour Violet
  • Reaction-to-fire class according to EN 13501-6: B2ca
  • Smoke development class according to EN 13501-6: s1a
Conductor surface Bare
Awg size 23
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Specification core insulation PE
Core identification Colour
Overall screening Foil
Conductor screening None
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour Violet
Reaction-to-fire class according to en 13501-6 B2ca
Smoke development class according to en 13501-6 s1a
Euro class flaming droplets/particles according to en 13501-6 d1
Euro class acidity according to en 13501-6 a1
Halogen free (acc. en 60754-1/2) yes
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. bs en 61034-2) yes
Outer diameter approx. 7.6 mm
Installation temperature range 0...50 °C
Operating temperature range -10...60 °C
Category 6
Nvp value 70 %

Key Features

  • Conductor surface: Bare
  • Awg size: 23
  • Conductor category: Class 1 = solid
  • Total number of cores: 8
  • Stranding element: Pairs
  • Specification core insulation: PE
