Excel Dual Cat6A Cable F/FTP LSOH CPR Euroclass B2ca 500 m Reel Aqua

Part Code: 190-206

Excel Dual Cat6A cable individually screened full F/FTP LSOH CPR Euroclass B2ca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500 m reels. Excel Cat6A fully screened (F/FTP) Cable takes the performance capabilities of copper infrastructure to new levels.

This delivers Class EA/Augmented Category 6 link performance over distances of up 90 m which supports the applications including 10GBASE-T, 10 Gigabit Ethernet.

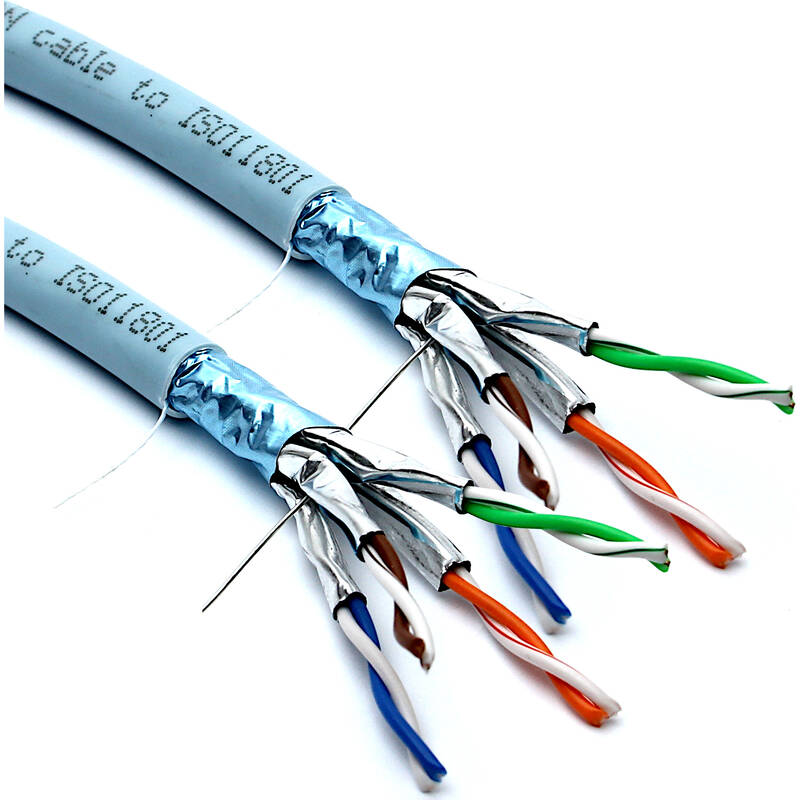

Each cable consists of four pairs which are individually wrapped with a high quality, strong, aluminium/polyester foil tape providing screening for each pair.

This is a dual cable providing two sets of conductors.

The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another overall foil.

Cable type	F/FTP
Conductor surface	Bare
Awg size	23
Conductor category	Class 1 = solid
Total number of cores	16
Stranding element	Pairs
Specification core insulation	Polyethylene (PE)
Core identification	Colour
Overall screening	Braiding
Conductor screening	Foil
Outer sheath material	Copolymer, thermoplastic (LS0H)
Outer sheath colour	Aqua
Flame retardant according to iec 60332-1-2	yes
Low smoke (acc. iec 61034-2)	yes
Halogen free (acc. iec 60754-2)	yes
Reaction-to-fire class according to en 13501-6	B2ca
Smoke development class according to en 13501-6	s1a
Euro class flaming droplets/particles according to en 13501-6	d1
Euro class acidity according to en 13501-6	a1
Outer diameter approx.	7.5 mm
Operating temperature range	-20...75 °C
Category	6A (IEC)
Nvp value	74 %
