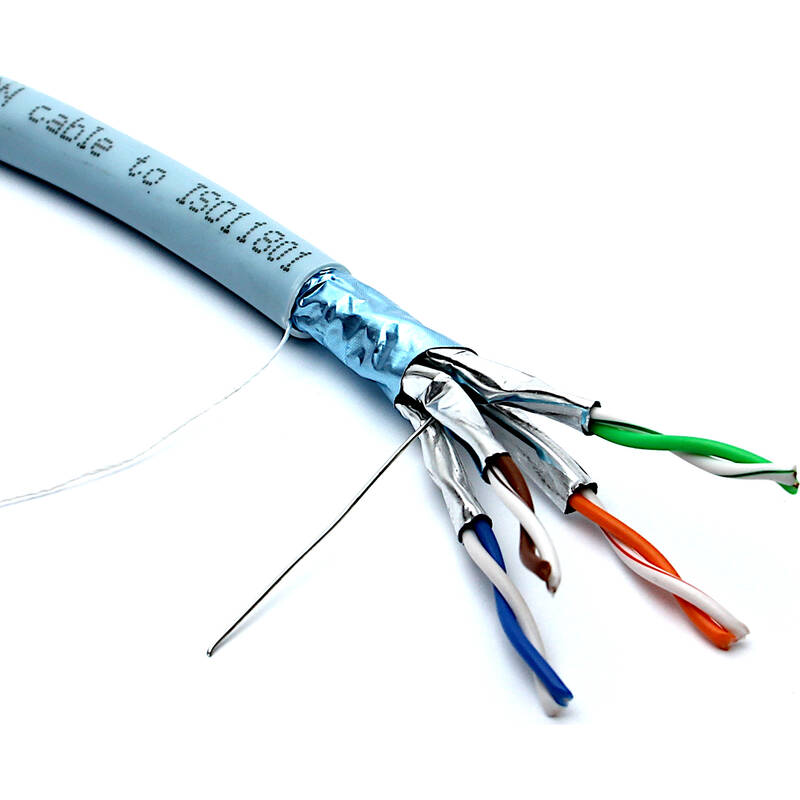

Excel Solid Cat6A Cable F/FTP LSOH CPR Euroclass B2ca 500 m Reel Ice Blue

Part Code: 190-996

Excel solid Cat6A cable individually screened full F/FTP LSOH CPR Euroclass B2ca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500m reels. Excel Cat6A fully screened (F/FTP) Cable takes the performance capabilities of copper infrastructure to new levels.

This delivers Class EA/Augmented Category 6 link performance over distances of up 90m which supports the applications including 10GBASE-T, 10 Gigabit Ethernet.

Each cable consists of four pairs which are individually wrapped with a high quality, strong, aluminium/polyester foil tape providing screening for each pair.

The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another overall foil.

  • Cat6A solid copper cable
  • F/FTP overall foil screen
  • Outer sheath colour ice blue
  • Euroclass B2ca-s1a,d1,a1
  • 25 year system warranty
  • CIBSE TM65 Embodied Carbon: 217.351 kg CO2e
Conductor surface Bare
Awg size 23
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Specification core insulation Polyethylene (PE)
Core identification Colour
Overall screening Foil
Conductor screening Foil
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour Ice blue
Flame retardant according to iec 60332-1-2 yes
Reaction-to-fire class according to en 13501-6 B2ca
Smoke development class according to en 13501-6 s1a
Euro class flaming droplets/particles according to en 13501-6 d1
Euro class acidity according to en 13501-6 a1
Outer diameter approx. 7.6 mm
Installation temperature range 0...50 °C
Operating temperature range -20...60 °C
Category 6A (IEC)
Nvp value 76 %
Declaration of Performance
B2ca s1a d1 a1

Key Features

  • Conductor surface: Bare
  • Awg size: 23
  • Conductor category: Class 1 = solid
  • Total number of cores: 8
  • Stranding element: Pairs
  • Specification core insulation: Polyethylene (PE)
