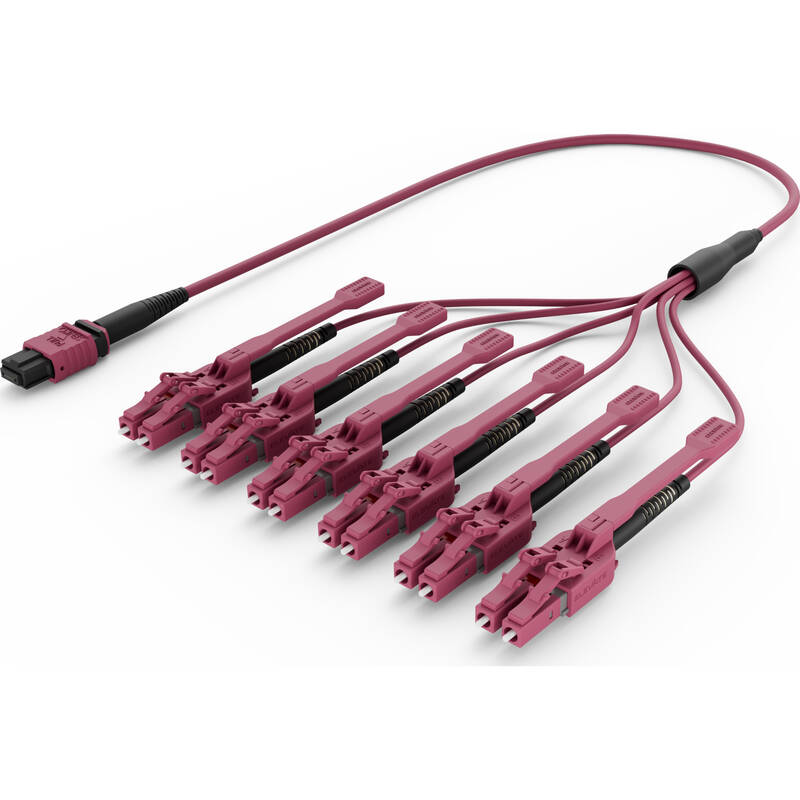

Elevate Base8 OS2 8 Fibre MPO Male to LC Pull Tab Fan Out AsseMethod Bly Method B 1m B2ca
Part Code: 208-08-OS2-08-MPOM-LCTAB-B001
The Elevate Base8 1m length MPO Male to LC fan-out cable is a singlemode OM4 assembly configured to Method B, designed for high-performance, high-density patching environments. Each unit features Senko low loss connectors, B2ca-rated Euroclass flame-retardant multifibre cable, and LC connectors with extended pull tab latches. LC polarity can be field-switched. This assembly forms part of the wider Elevate MPO cassette and patching system. OM5 options are available upon request.
| Fibre type | Single mode |
| Category | OS2 |
| Number of cores | 8 |
| Length | 1 m |
| Type of connector connection 1 | MPO-Male |
| Type of connector connection 2 | LC (Pull Tab) |
Key Features
- MPO to LC fan-out assembly
- 600mm breakout length
- Configured to Polarity B
- B2ca Euroclass flame retardant jacket
- Senko low loss connectors
- Factory tested with QR code for test report access
