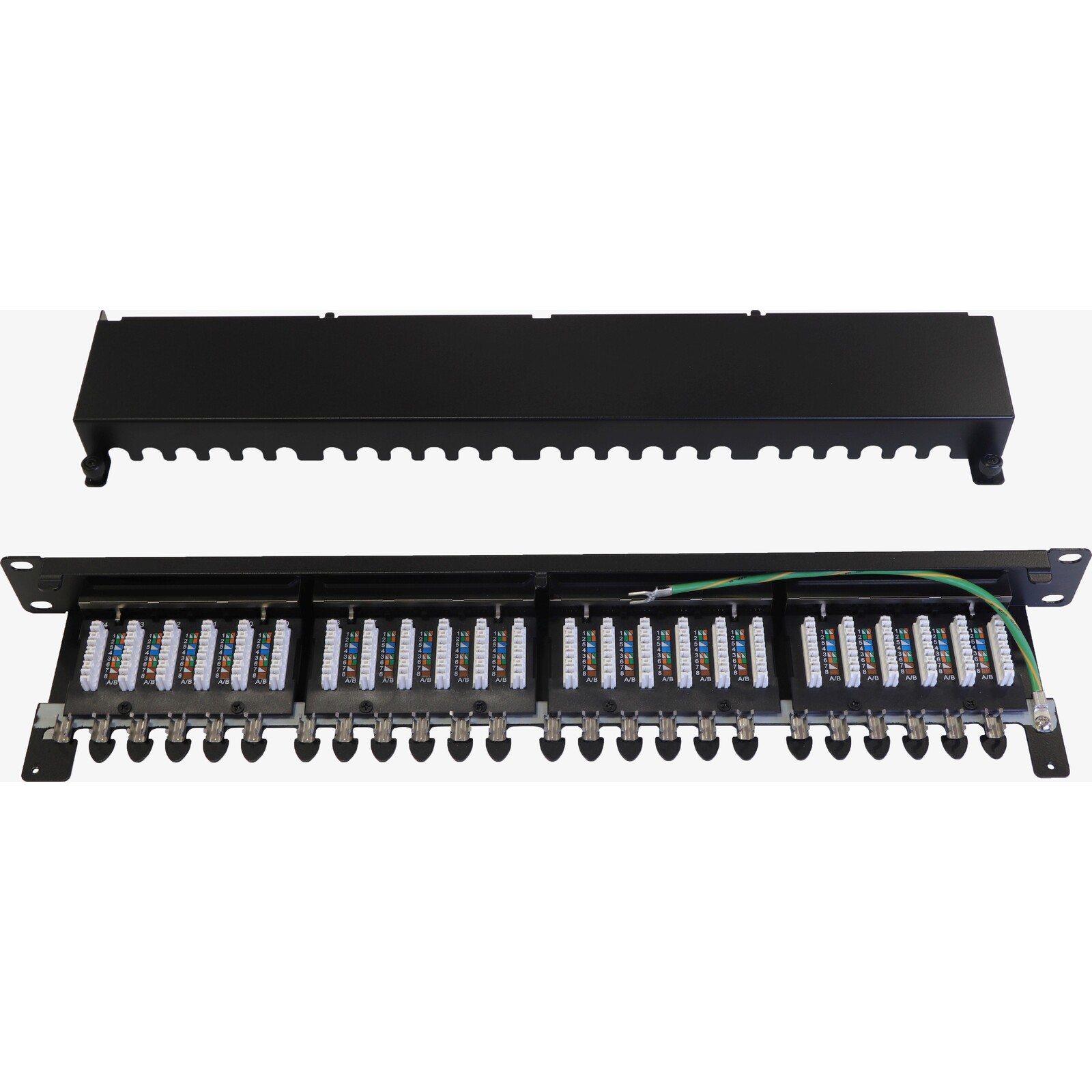

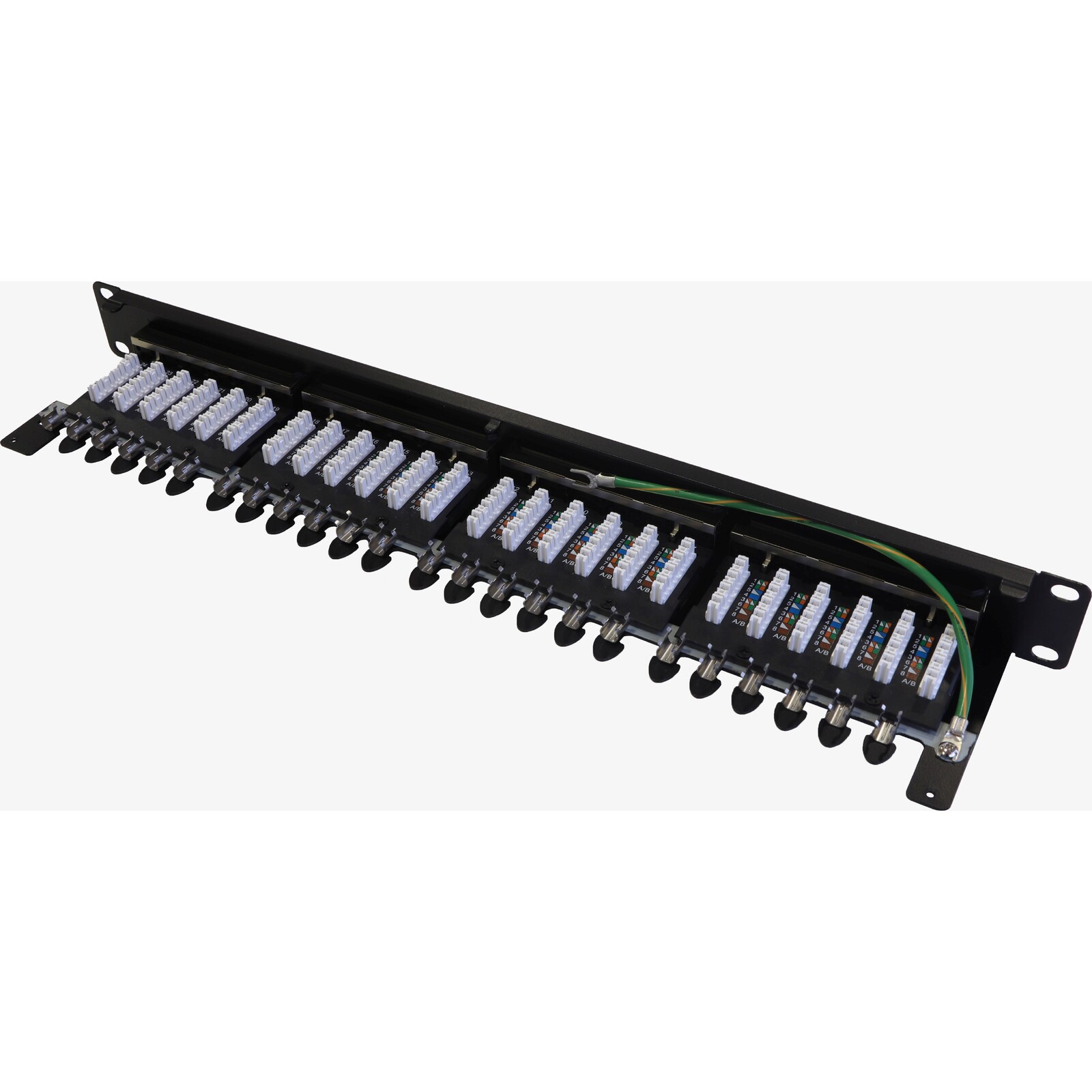

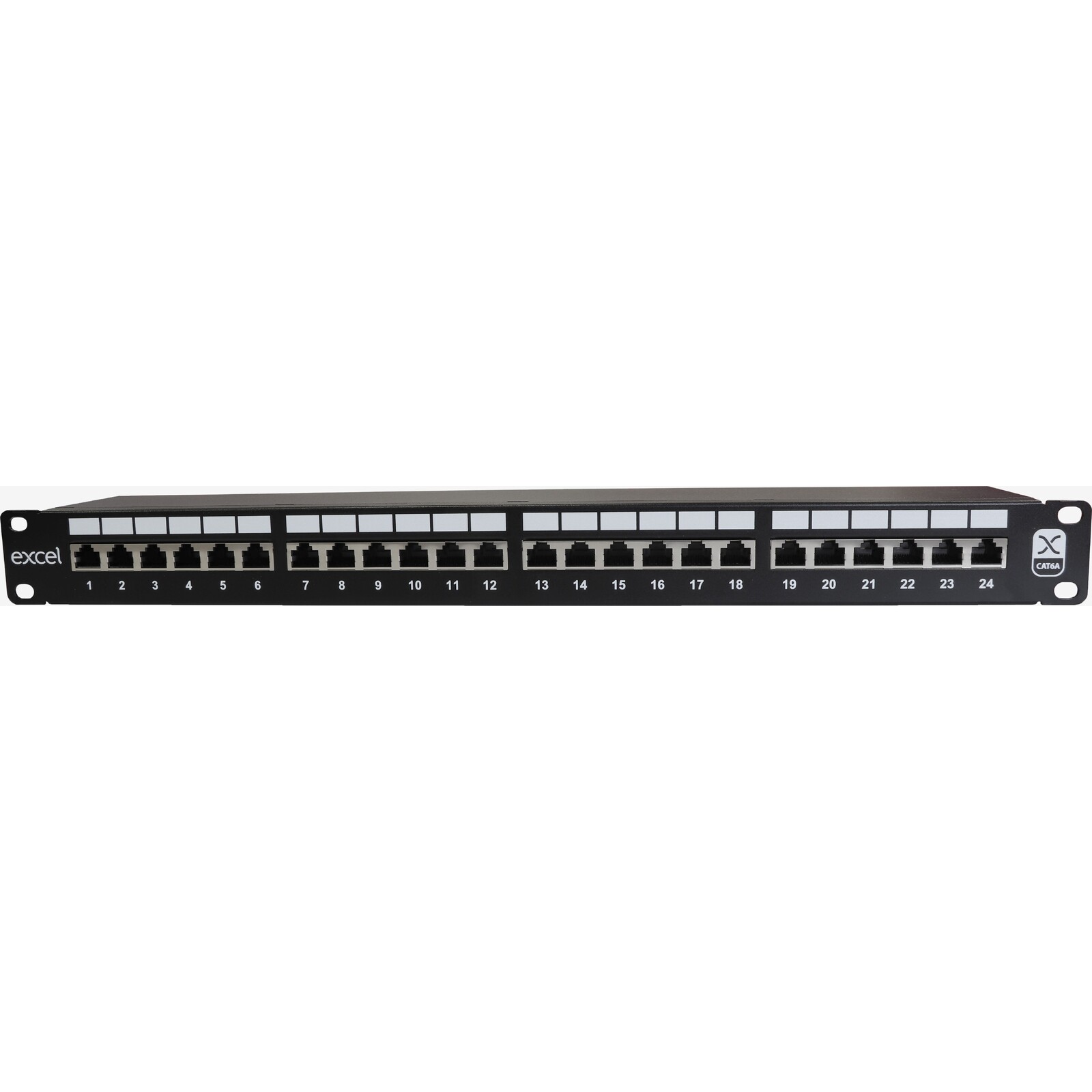

Excel Category 6A Screened PCB punchdown panel - 24-port, 1U - black

Part Code: 100-032

Excel Category 6a Screened Patch Panels have been designed to meet or exceed the latest ISO and TIA requirements for category 6a compliance. Ease of installation is assured with built in rear cable clamps to ensure quality grounding is achieved.

Each panel has a screen printed labelling field positioned above each port,. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress. Each panel consists of a number of 6 way blocks of RJ45 sockets, housed in screened quality moulding.

  • Earthing kit, cage nuts and mini cable ties included
  • Fast fit rear cable management
  • For Screened systems
  • 25 Year system warranty
Number of ports – loaded 24
Type of connector RJ45 8(8)
Shielded yes
Category 6A (IEC)
Connection type LSA
Number of rack units (ru) 1
Colour Black
Height 44 mm
Width 482.5 mm
Depth 95 mm

Key Features

  • Number of ports – loaded: 24
  • Type of connector: RJ45 8(8)
  • Shielded: yes
  • Category: 6A (IEC)
  • Connection type: LSA
  • Number of rack units (ru): 1
