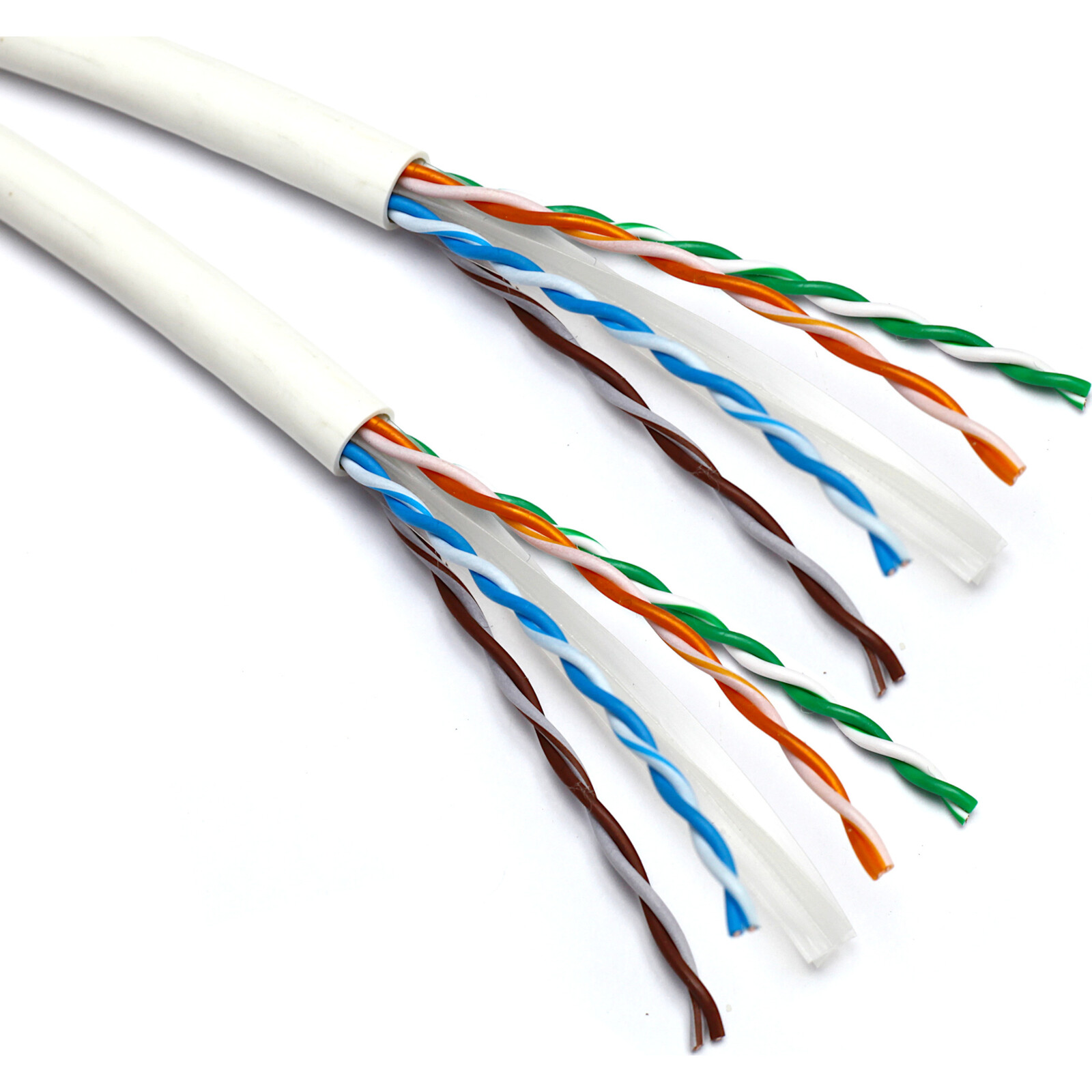

Excel Solid Cat6 Dual Cable U/UTP LSOH CPR Euroclass Dca 500 m Reel White

Part Code: 100-103

Excel solid Dual Cat6 ethernet cable U/UTP LSOH CPR Euroclass Dca manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Cat 6 specifications, 500m Reel. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.

These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.

  • Dual Cat6 Copper Cable
  • U/UTP No Overall Screening
  • No Conductor Screening
  • Outer sheath colour White
  • Reaction-to-fire class according to EN 13501-6: Dca
  • Smoke development class according to EN 13501-6: s2
Conductor surface Bare
Awg size 24
Conductor category Class 1 = solid
Total number of cores 16
Stranding element Pairs
Specification core insulation Polyethylene (PE)
Core identification Colour
Overall screening None
Conductor screening None
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour White
Flame retardant according to iec 60332-1-2 yes
Reaction-to-fire class according to en 13501-6 Dca
Smoke development class according to en 13501-6 s2
Euro class flaming droplets/particles according to en 13501-6 d2
Euro class acidity according to en 13501-6 a1
Outer diameter approx. 12.02 mm
Installation temperature range 0...60 °C
Operating temperature range -20...75 °C
Category 6
Nvp value 69 %

Key Features

  • Conductor surface: Bare
  • Awg size: 24
  • Conductor category: Class 1 = solid
  • Total number of cores: 16
  • Stranding element: Pairs
  • Specification core insulation: Polyethylene (PE)
