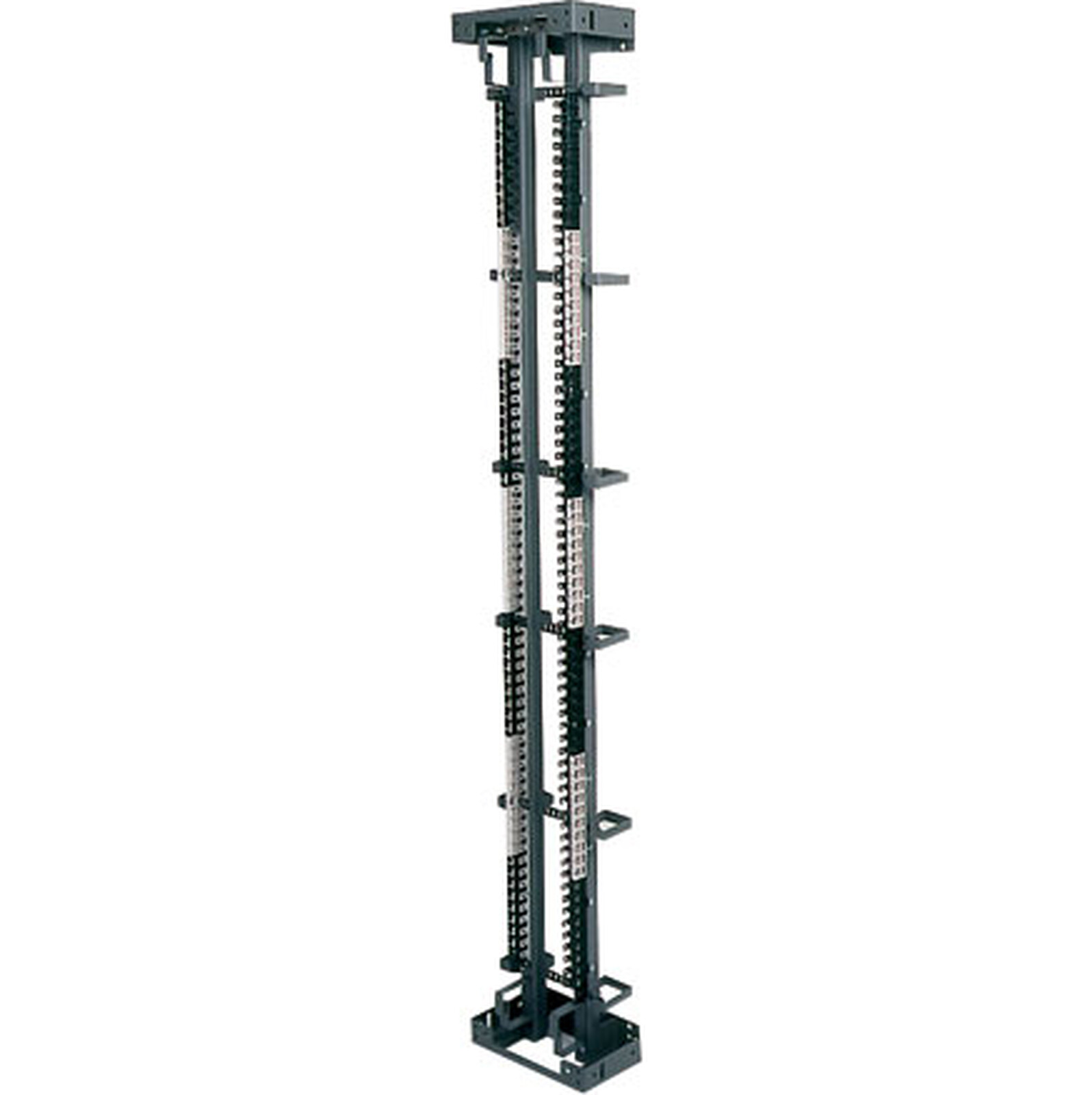

Excel 69 Way Distribution Frame
Part Code: 111B
The Modular construction of the 111B means that any size of installation can be equipped using a standard building block. The 111B is compatible with older style frames e.g. 105, 108 to allow extension of existing installations.
Single verticals can be joined side by side for wall mounting or back to back to form a free standing system. If height reduction is required, the legs can be removed and the 111B mounted directly on the floor giving an overall height of just 1850mm.
- British Telecom Approved
- Single Vertical
- Modular Growth
- Light Weight
- Easily Transportable
- Wall Mounting or Free Standing
- 690 Pair Capacity
Model | Free standing distributor |
With connecting lugs | yes |
Lsa | Yes (237A required) |
Material | Steel |
Height | 1850 mm |
Width | 280 mm |
Depth | 150 mm |
Number of mountable connection strips | 69 |
Key Features
- Model: Free standing distributor
- With connecting lugs: yes
- Lsa: Yes (237A required)
- Material: Steel
- Height: 1850 mm
- Width: 280 mm
