Excel Enbeam 24 Way Multimode Fibre Optic Panel 24 ST (24 Fibre)

Part Code: 200-384

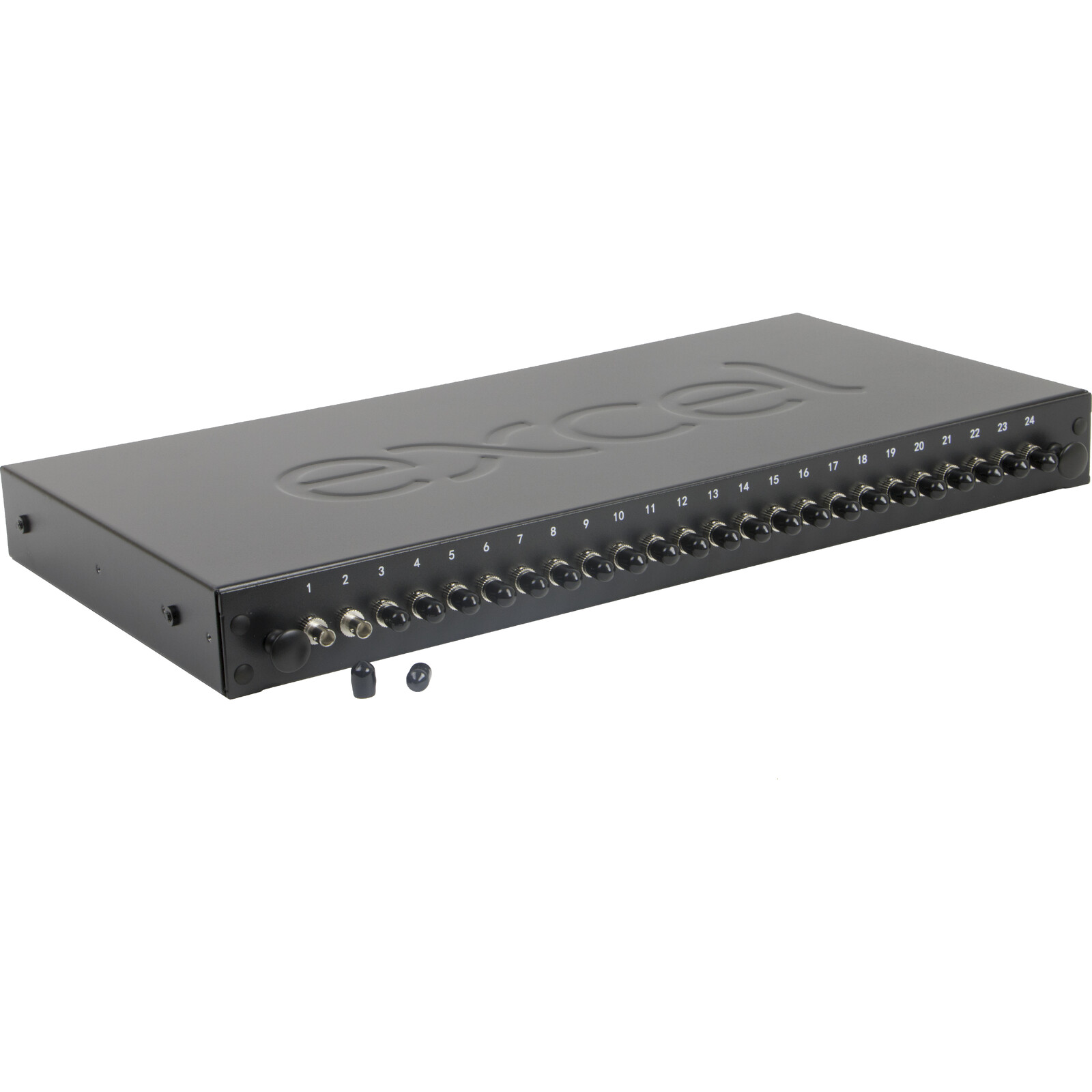

The Excel range of ST patch panels are sliding drawer 'tray style' housings suitable for either direct termination or splicing of up to 24 fibres in 1U of rack space. Each panel is manufactured from high quality 2mm thick steel with a black powder coat finish to provide a strong and durable unit. To the front of the patch panel the specified number of ST adaptors are loaded from left to right.

Each adaptor is fitted with a colour coded dust cap, black for multimode, red for singlemode. Each adaptor accommodates one terminated fibre. Each panel has included within it a set of adjustable fixing brackets, and a cable management pack which includes cable entry glands, cable ties, and a 24-way splice bridge.

Note that ST panels can be assembled to order using a combination of adaptors, pigtails and splice cassettes - call to enquire

  • Multimode and Singlemode
  • Choice of port density
  • 1U rack space design
  • Adjustable fixing arms included

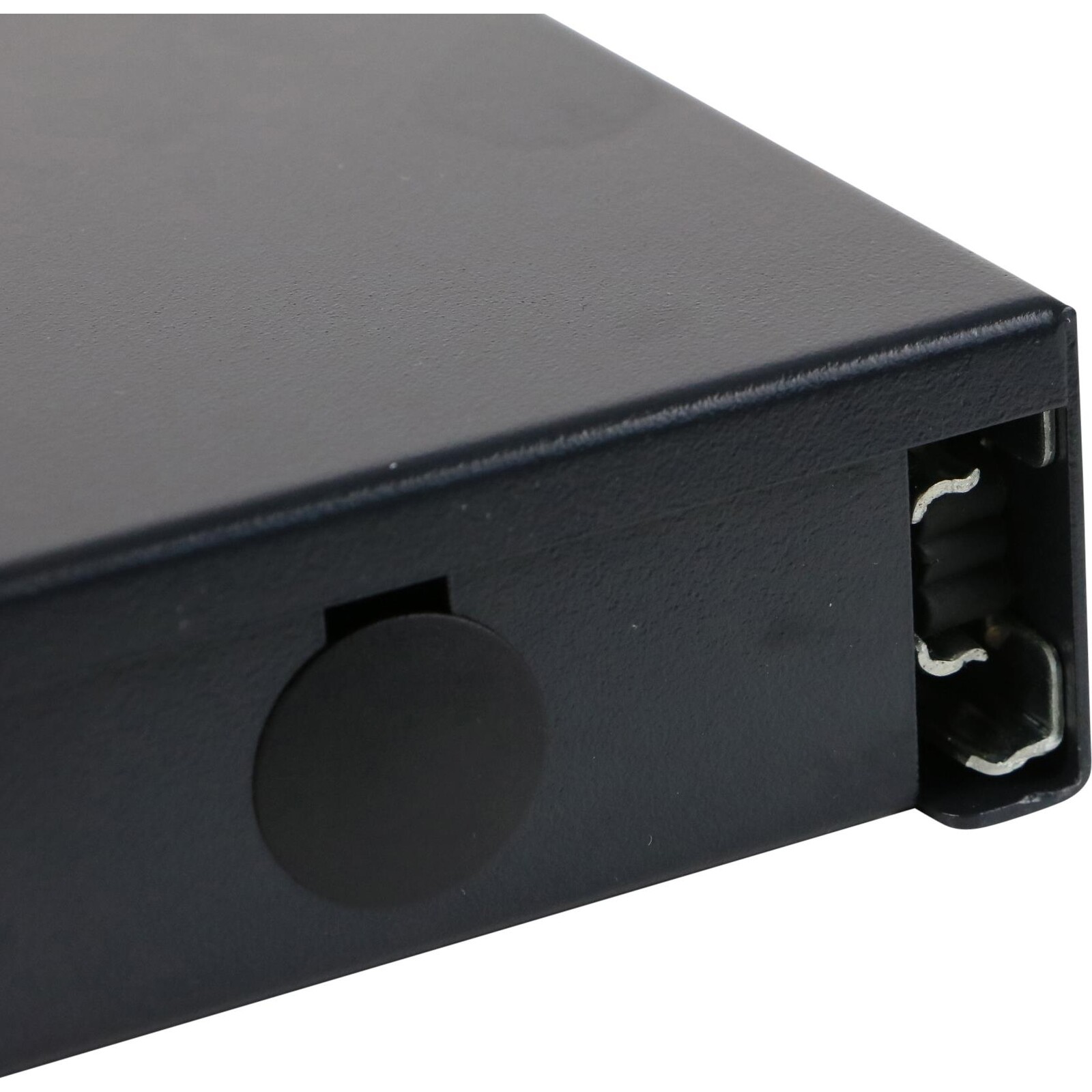

  • Multiple cable entry to rear
  • Sliding drawer on ball bearing runners
  • Management and Fixing Kit Included
  • Up to 24 adaptors per patch panel
  • Port identification numbers
  • Optional patchcord management
  • Special configurations made to order
  • 25 Year System Warranty
Suitable for number of fibre cores 24
Suitable for number of module inserts 24
Loaded with number of couplings/adapters 24
With pigtails no
Fibre type Multimode 50/125 and 62.5/125
Fibre class OM1/OM2/OM3/OM4/OM5
Apc-type no
Type of connector external ST
Type of connector interior ST
Colour Black
Ral-number 9005
Mounting method 19 inch mounting
Number of rack units (ru) 1
Height 43.5 mm
Width 483 mm
Depth 219.5 mm

Key Features

  • Suitable for number of fibre cores: 24
  • Suitable for number of module inserts: 24
  • Loaded with number of couplings/adapters: 24
  • With pigtails: no
  • Fibre type: Multimode 50/125 and 62.5/125
  • Fibre class: OM1/OM2/OM3/OM4/OM5
