200-653

200-653

Image 1 of 2

200-653

200-653

Image 2 of 2

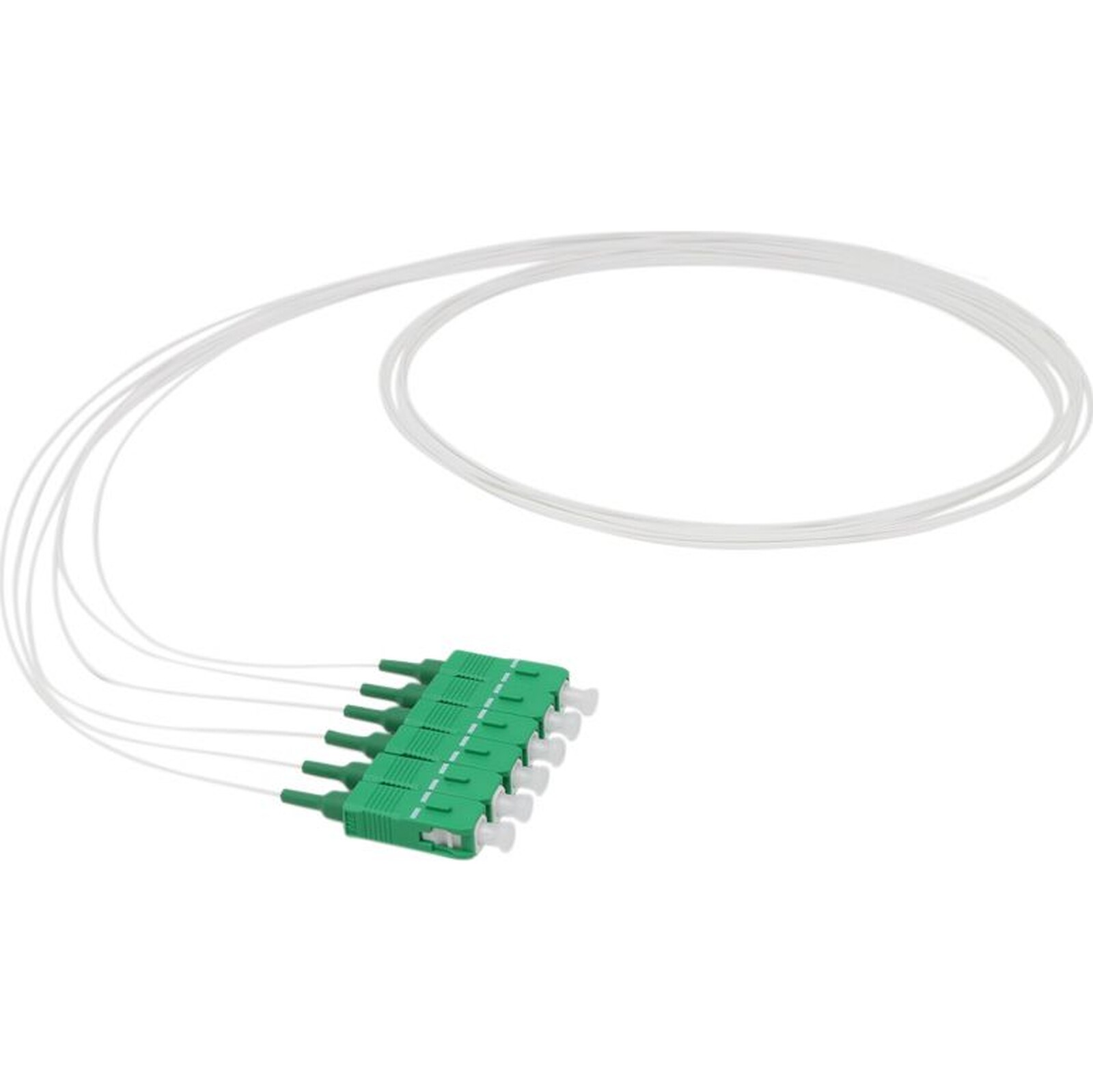

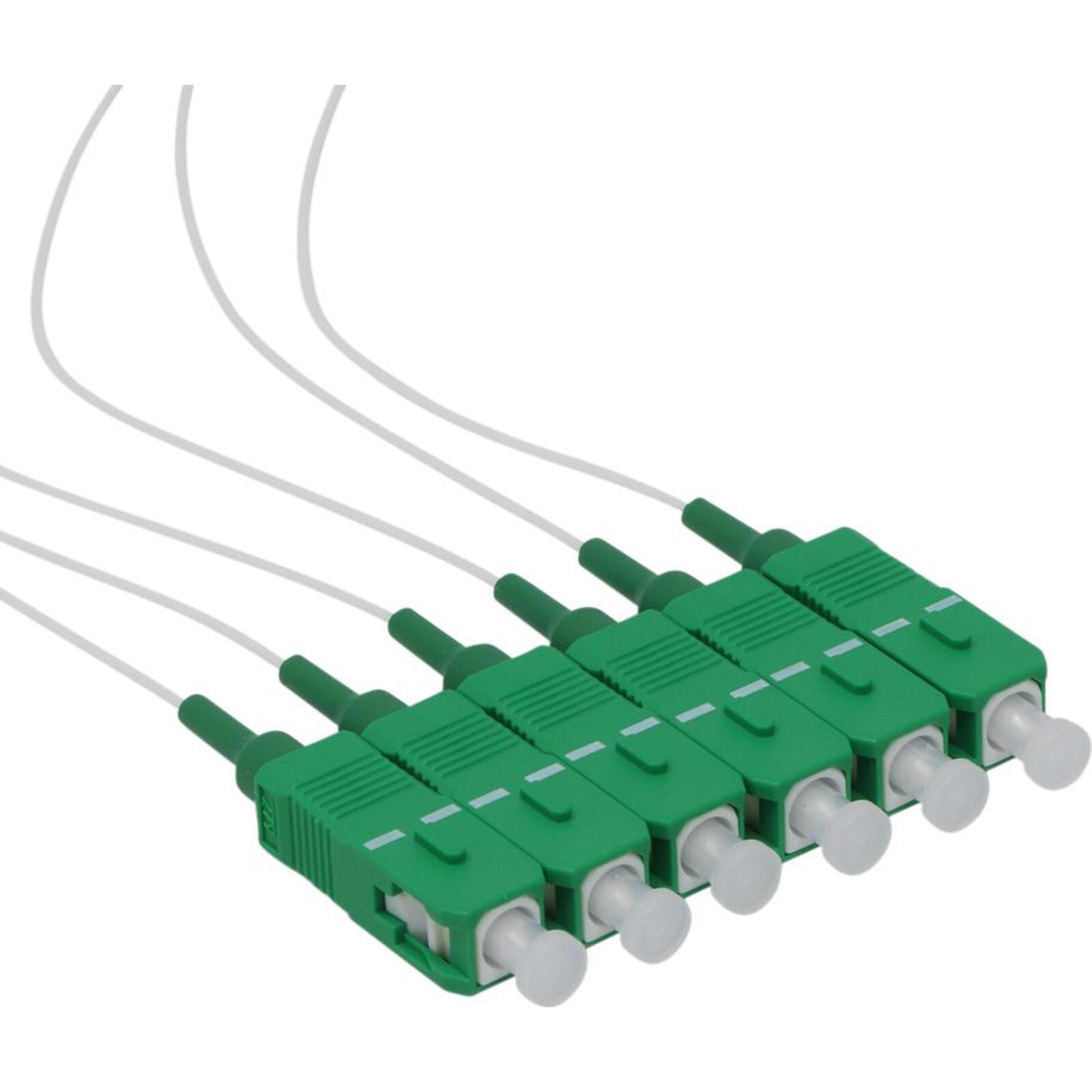

Excel Enbeam Fibre Pigtail OS2 9/125 SC/APC Clear White 1 m (12-Pack)

Part Code: 200-653

Excel singlemode fibre optic pigtails are manufactured from the highest quality 900 micron optical fibre, terminated with ceramic ferrule connectors of various types. To assist in fast cable preparation and splicing semi tight buffered, easy strip, cable is used as standard. Cable preparation, termination and testing is carried out to strictly managed procedures in an Excel approved, ISO9001 registered manufacturing facility.

Each pigtail has a strain relief boot to prolong and maintain performance levels of the assembly. A short distance from the connector a label containing a unique batch number is fixed to cable for quality and traceability purposes.

  • G.657.A2 Bend Insensitive
  • Choice of lengths
  • Choice of connectors
  • Each cable is individually packaged and labelled
  • Test Certificate with each cable
Fibre type Single mode
Category OS2
Length 1 m
Type of connector SC
Apc-type yes
Colour White
Strain relief boot Push-on

Key Features

  • Fibre type: Single mode
  • Category: OS2
  • Length: 1 m
  • Type of connector: SC
  • Apc-type: yes
  • Colour: White
