Excel Enbeam OM4 Multimode Fibre Optic Cable Tight Buffered 8 Core 50/125 LSOH Cca Black

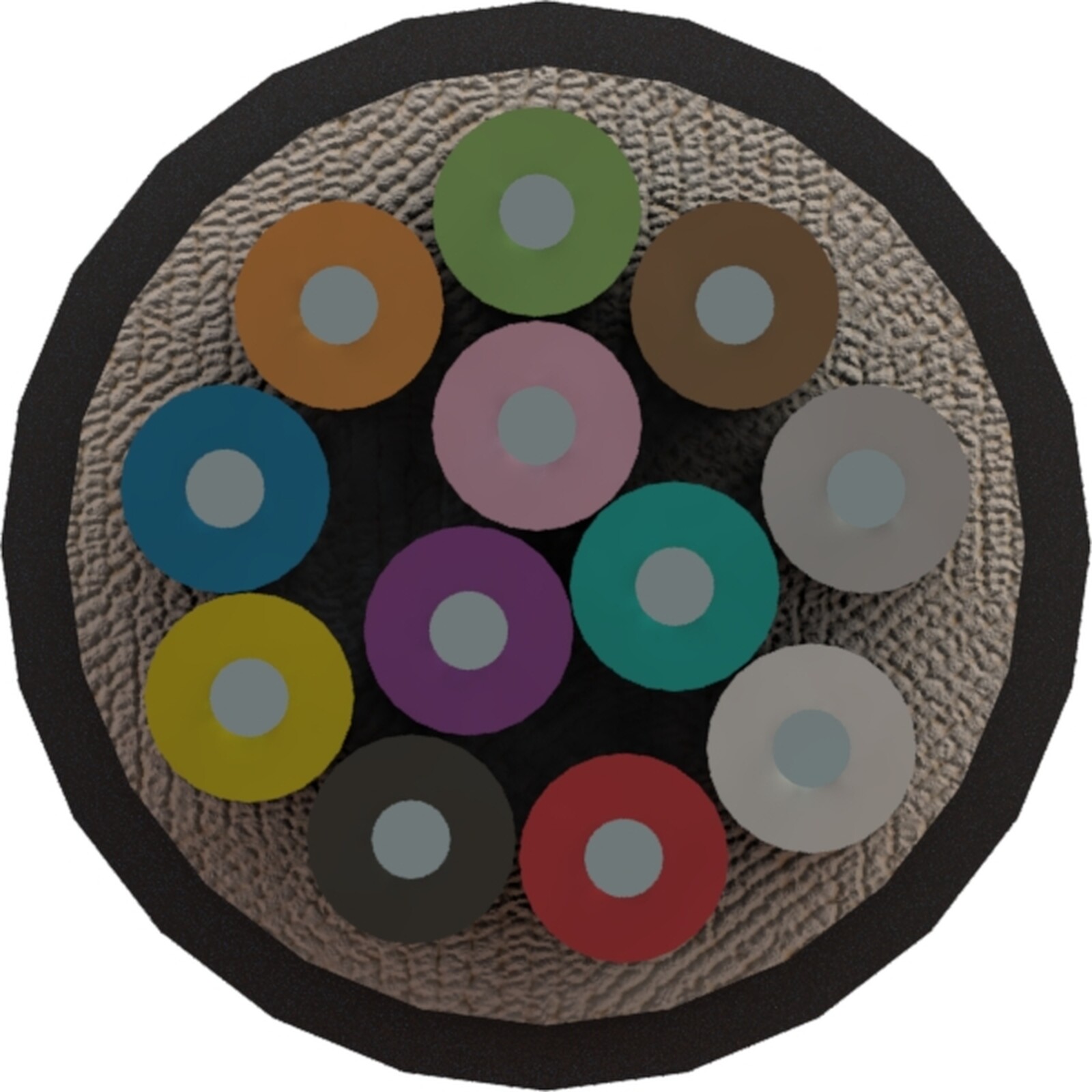

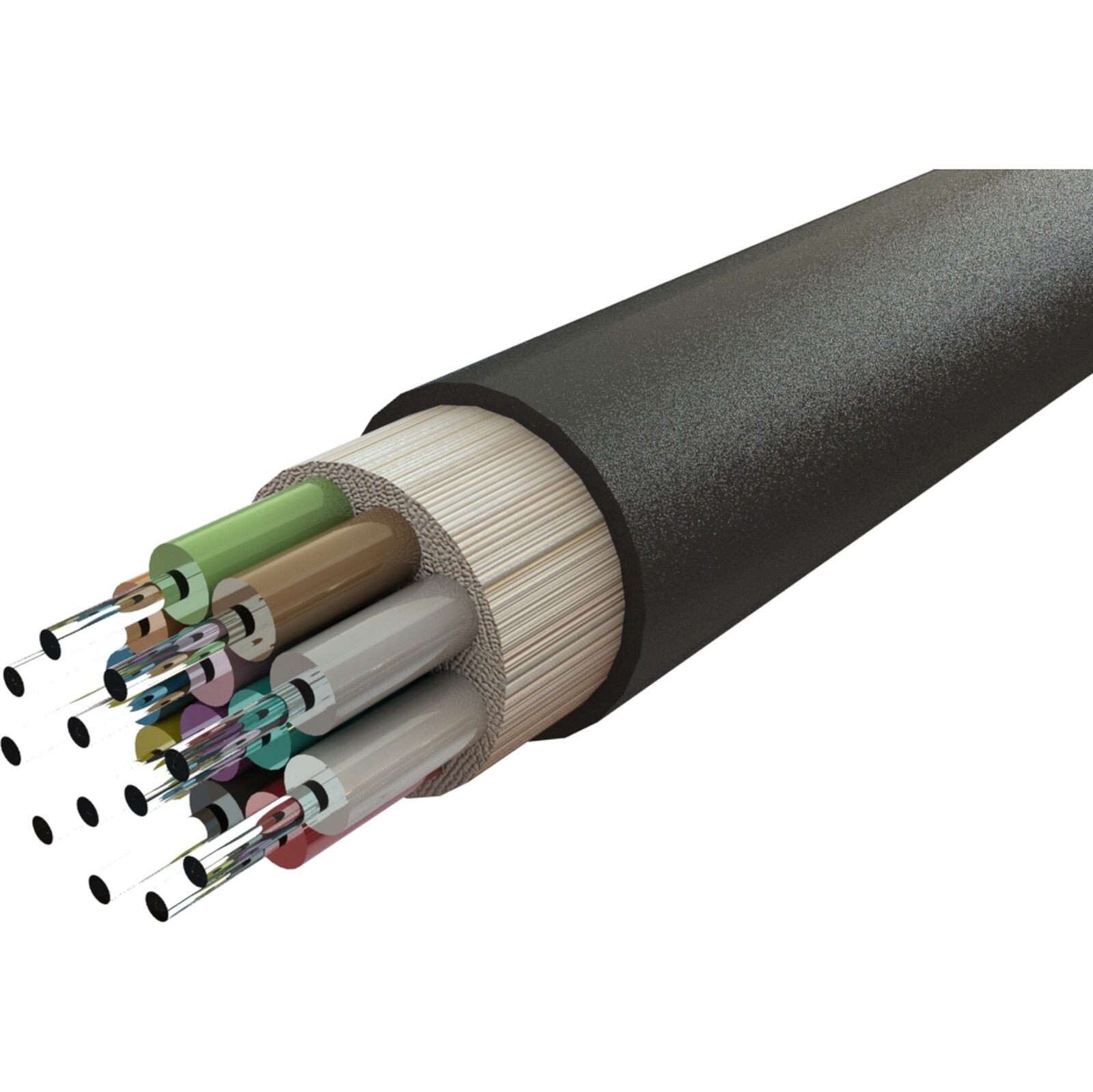

Enbeam OM4 multimode fibre optic cable tight buffered 8 core 50/125 G.657.A2 bend insensitive LSOH Cca black, part of a huge range of OM4 fibre optic cables fully stocked at Mayflex. Excel OM4 50/125 μm tight buffered optical fibre cables have been designed specifically for internal and external applications. The cables are constructed around an E-Glass strength member containing up to 24 colour coded 900 μm tight buffered fibres, covered with a flame retardant, low smoke zero halogen, outer sheath. These compact, lightweight cables are extremely flexible and are quick and easy to install.

Key features
Water resistant & UV resistant
Duct grade ‐ rodent resistant
Sequentially metre marked
Cut to length service
Euroclass Cca-s1a-d0-a1
25 year system warranty
compatibility:
CIBSE TM65 Embodied Carbon: 0.289 kg CO2e
Number of Cores
8
Type of tube
Tight
Fibre type
Multi mode 50/125
Category
OM4
Rodent resistant
yes
Outer sheath material
Copolymer, thermoplastic (LS0H)
Outer sheath colour
Black
Flame retardant according to IEC 60332-1-2
yes
Low smoke (acc. IEC 61034-2)
yes
Reaction-to-fire class according to EN 13501-6
Cca
Smoke development class according to EN 13501-6
s1a
Euro class flaming droplets/particles according to EN 13501-6
d0
Euro class acidity according to EN 13501-6
a1
Outer diameter approx.
6.6 mm
