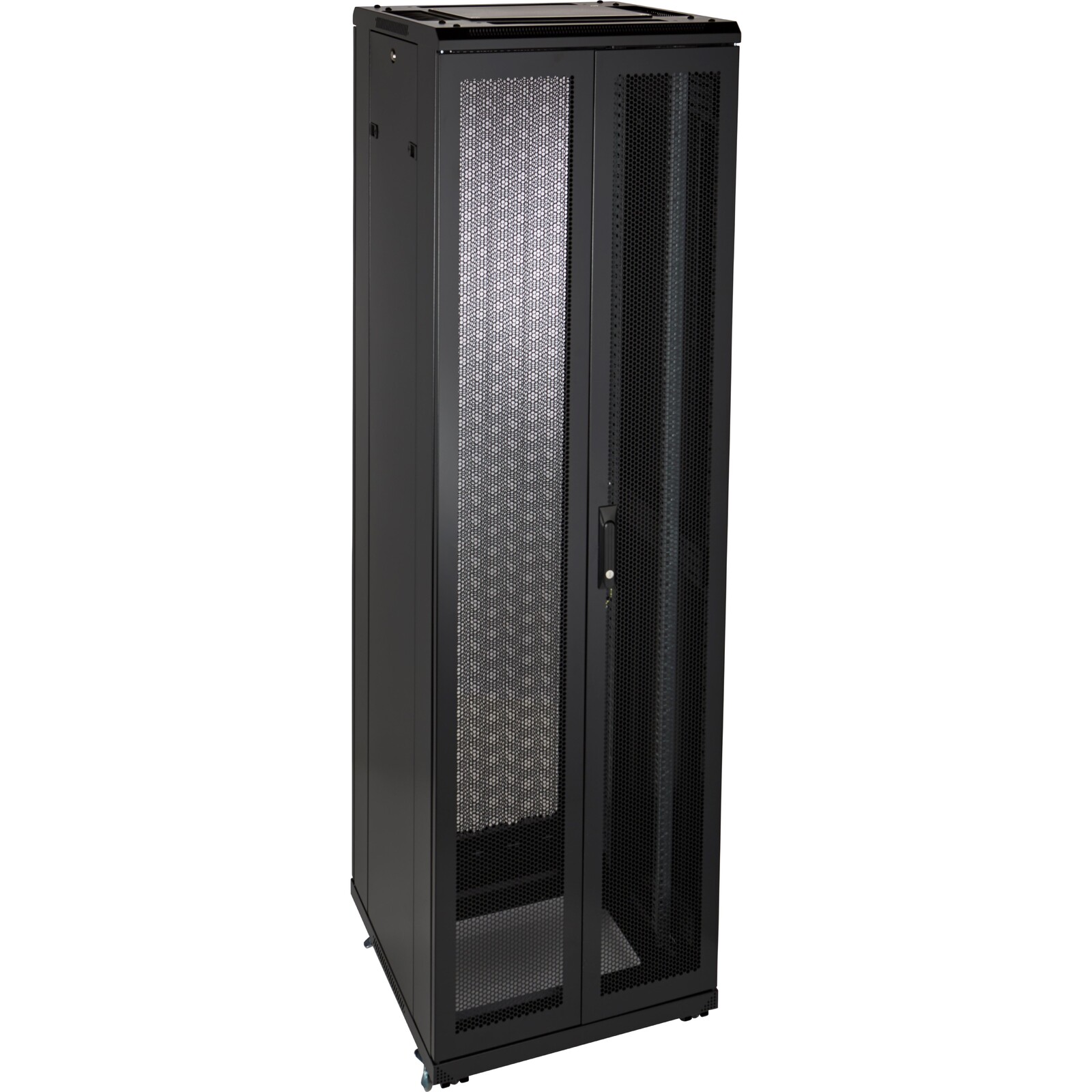

Environ ER600 29U Rack 600x600mm D/Vented (F) D/Vented (R) B/Panels No/Mgmt Black
Environ ER600 Equipment Racks are a versatile range of 600mm wide racks with features suitable for a wide range of applications within the data, security, audio visual and telecommunications markets.
Key features
Bespoke configuration / double doors front and rear
Choice of depths available
Choice of colours available
19" profiles marked with U height position

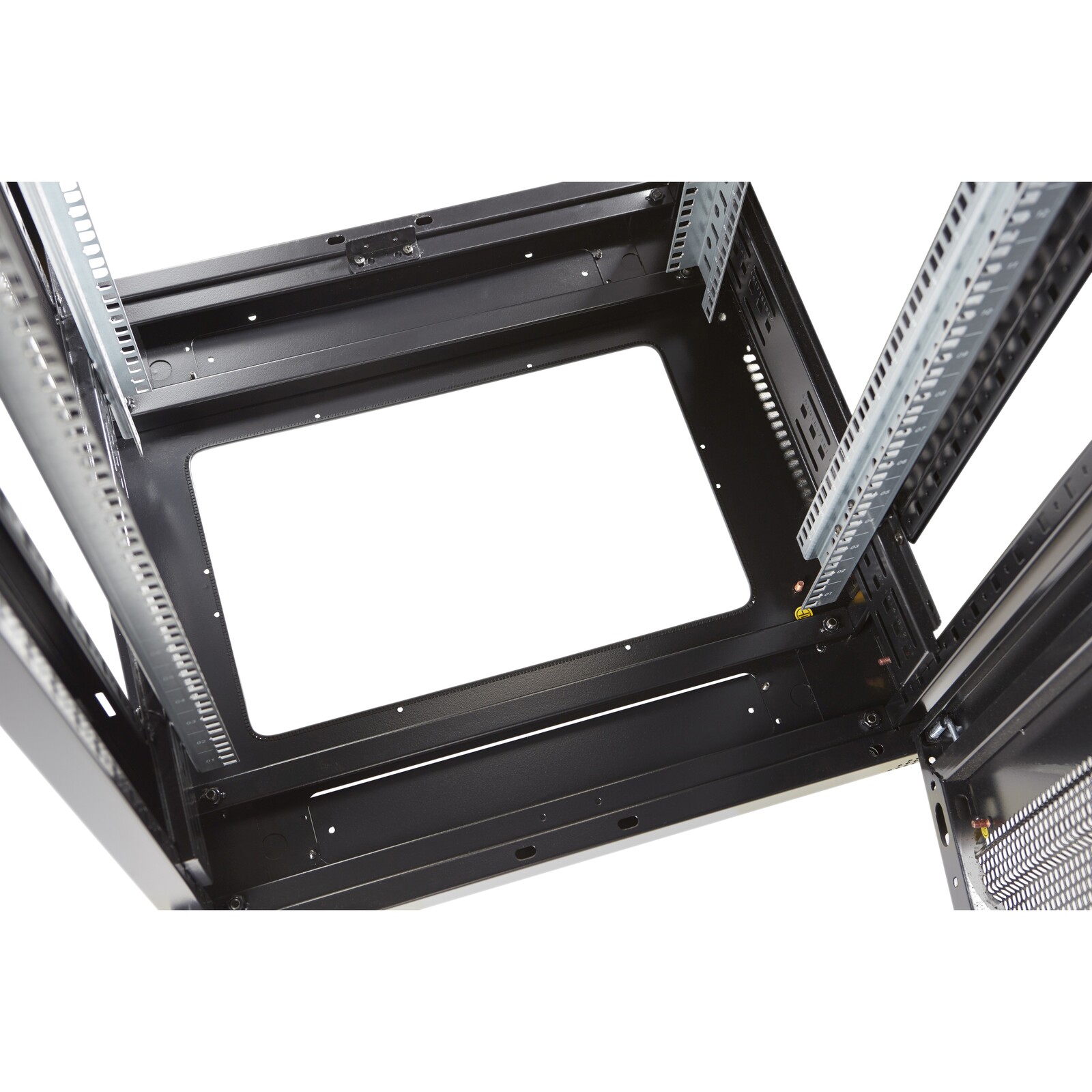

Large cut out in base for cable entry

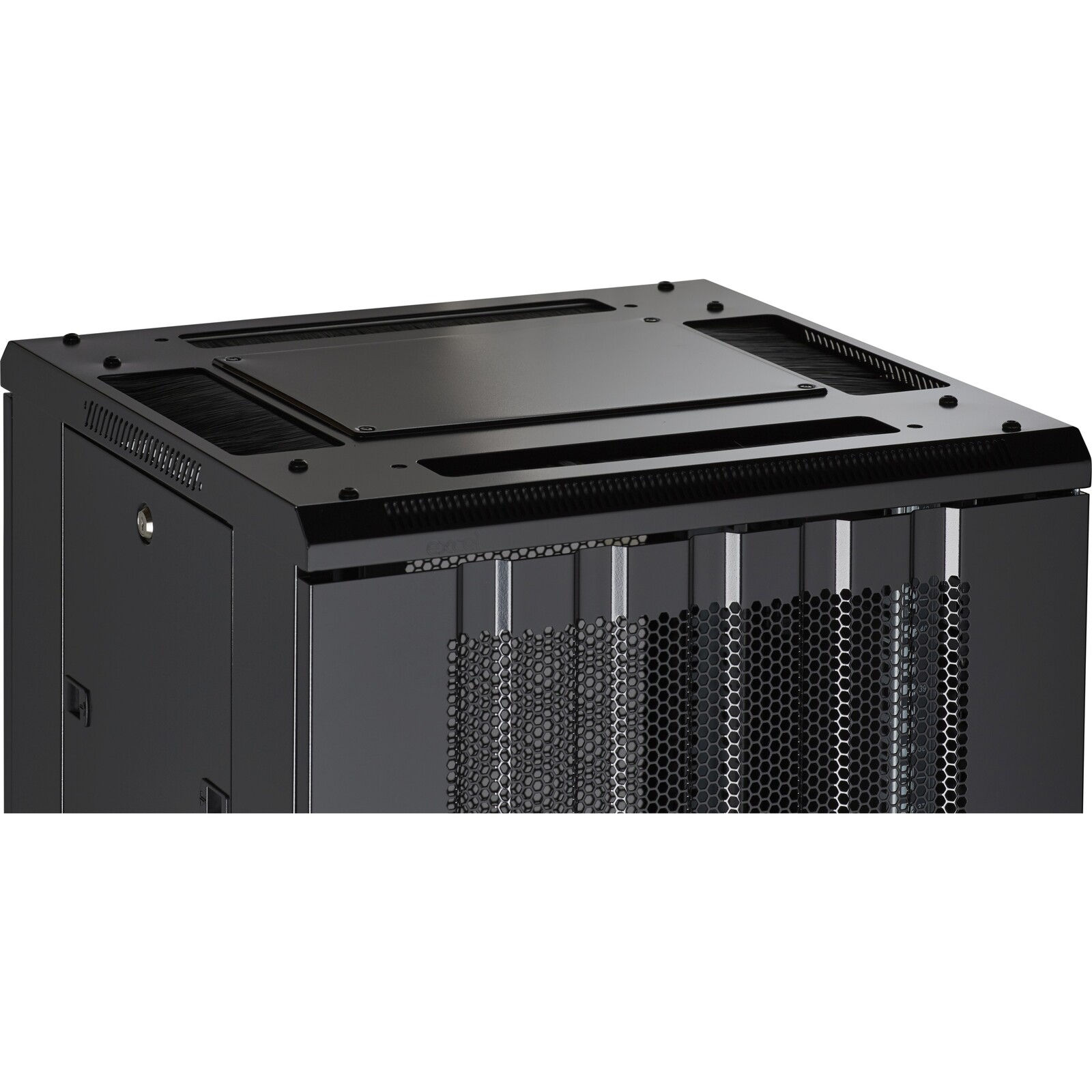

Brush strip cable entry in roof and base of rack
70% ventilation on all doors
Racks supplied assembled or flat packed
Supplied with baying kit, levelling feet and heavy duty lockable castors as standard
compatibility:
Mounting Profile
Front and rear
Type of profile rail
L-shaped
Number of doors
2
Type of ventilation
Passive
Width
600 mm
Height
1490 mm
Depth
600 mm
Modular spacing
19 inch
Number of rack units (RU)
29
Max. load capacity
800 kg
With roof plate
yes
With earthing
yes
With front door
yes
Front door material
Steel
Front door locking system
Two-point
With rear door
yes
Rear door material
Steel
Rear door locking system
Two-point
Side panels included
yes
With vertical cable management
no
Material
Steel
Type of surface
Powder coated
Colour
Black
RAL-number
9004
Flat-packed
no
IP-rating
N/A
Application
Equipment Rack
