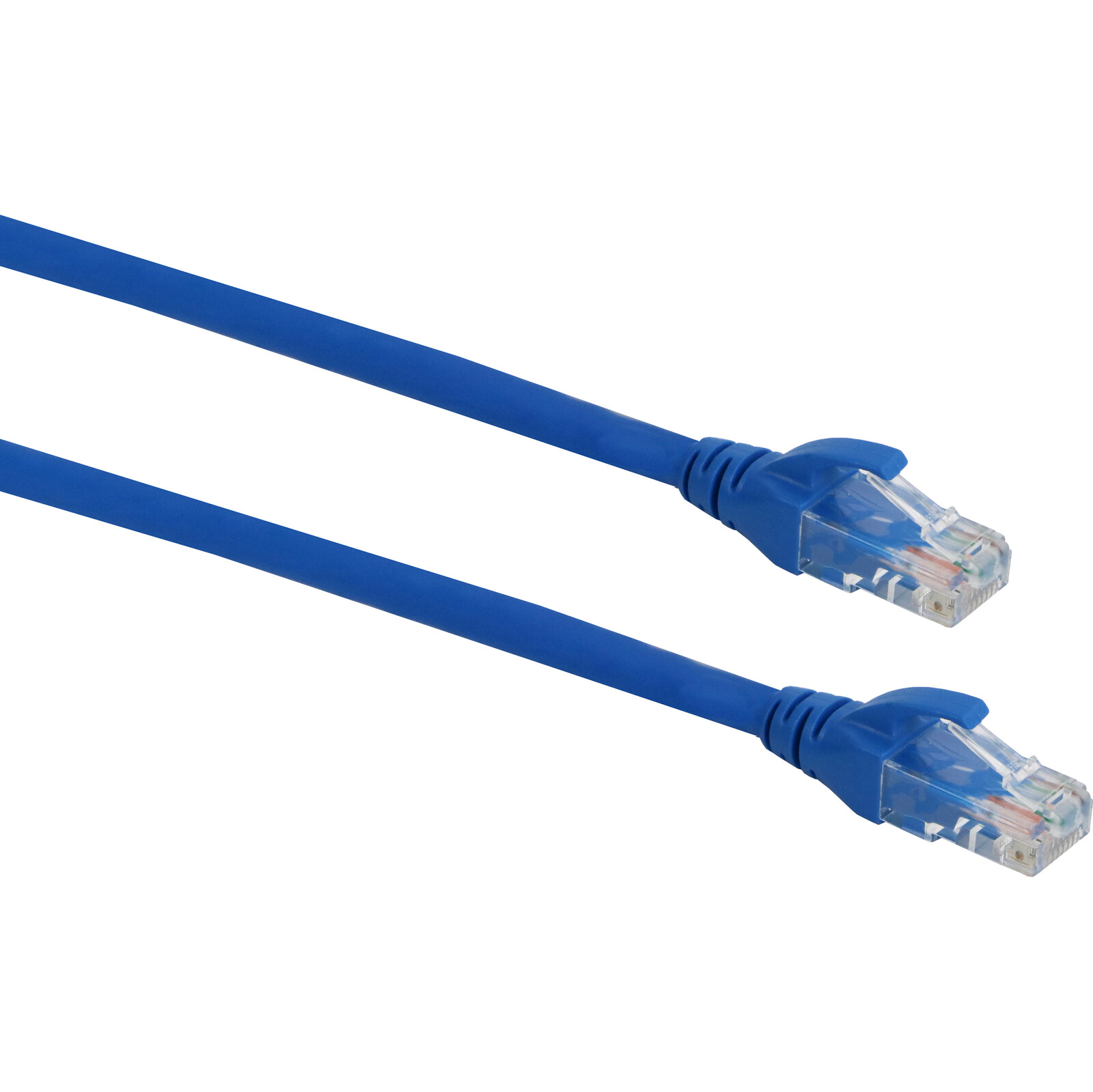

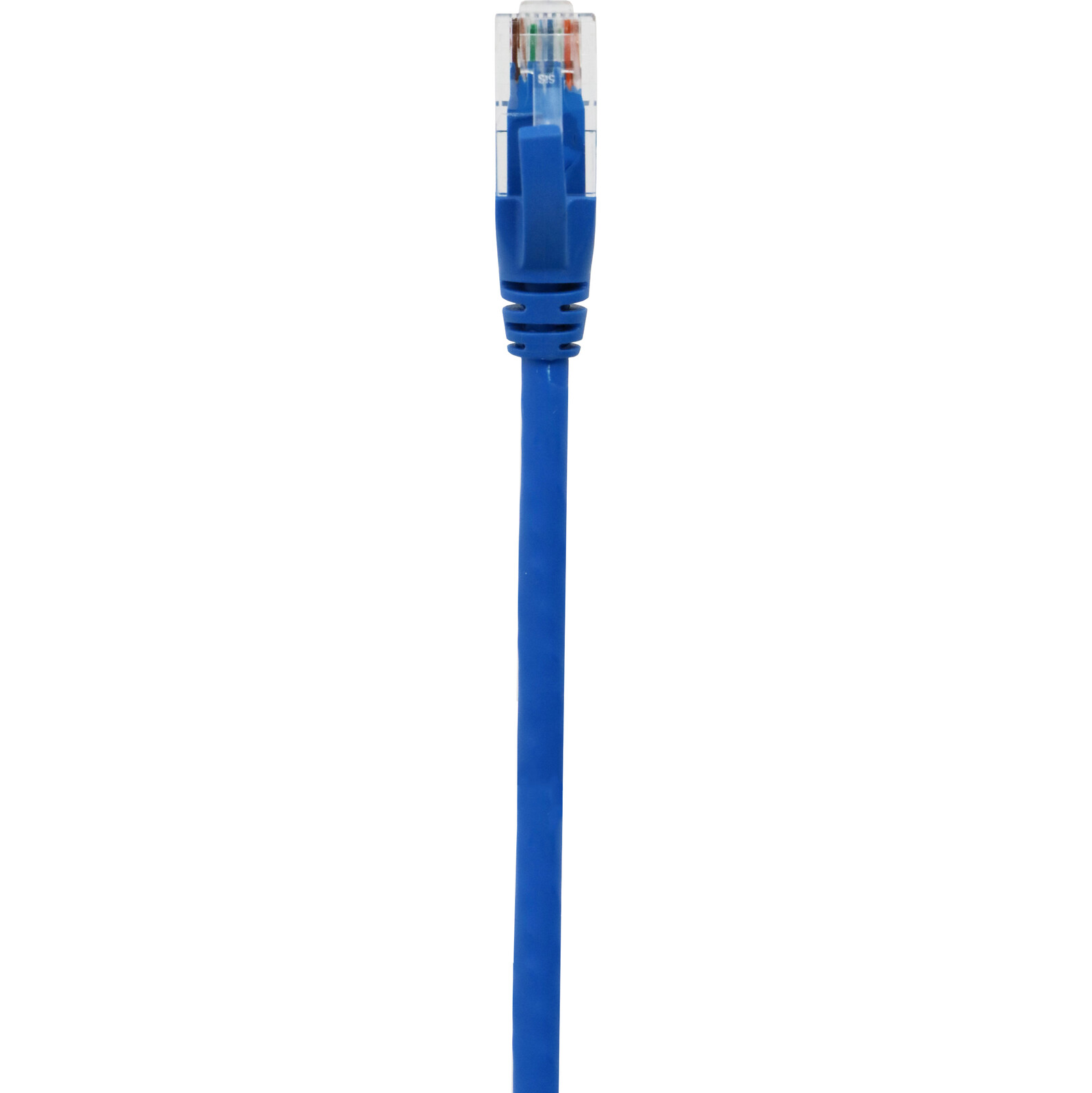

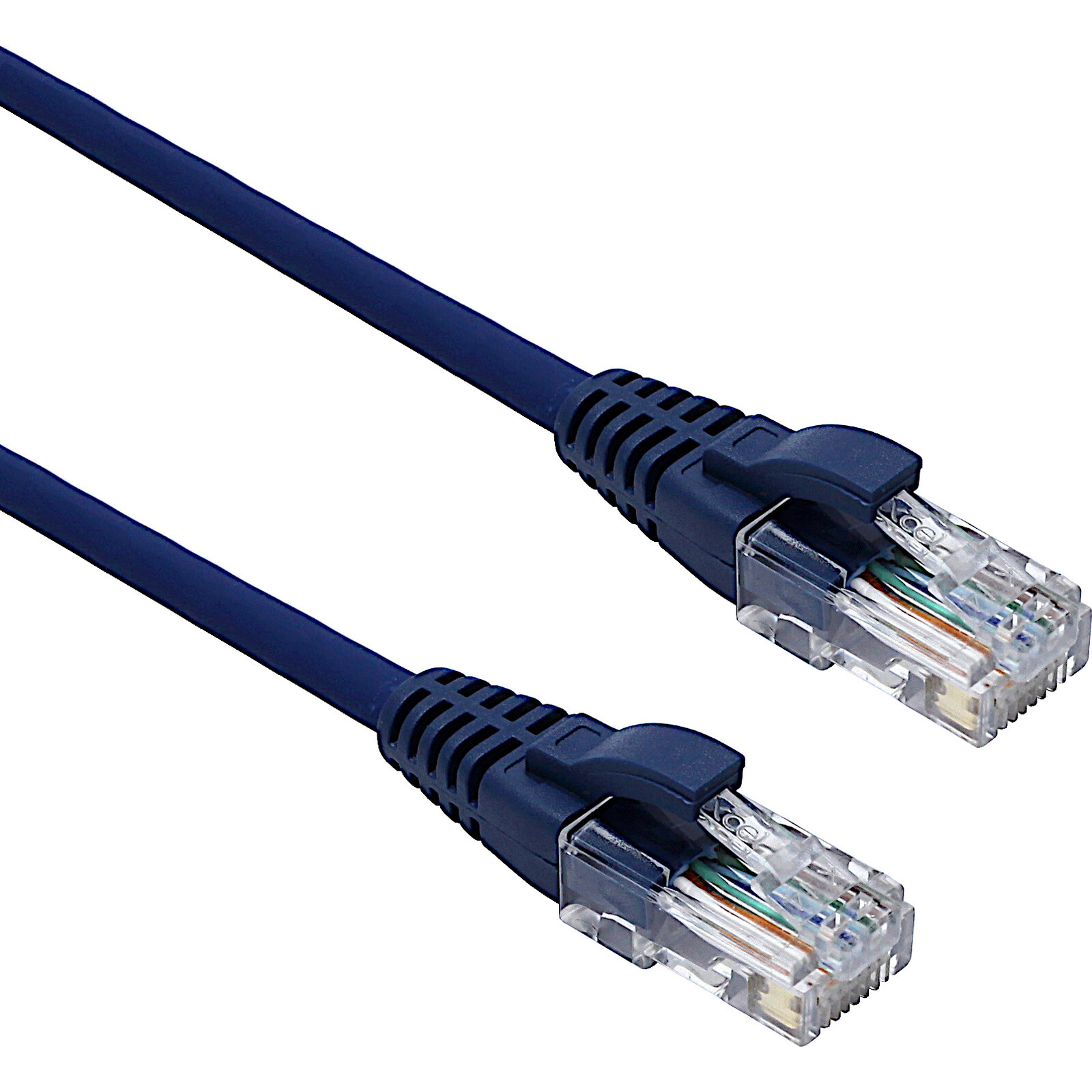

Excel Cat5e Patch Lead U/UTP Unshielded LSOH Blade Booted 2 m Blue
Excel Category 5e U/UTP Patch Leads are manufactured and tested to ISO11801 Category 5e and EIA/TIA 568 standards. Each cable consists of 8 colour coded stranded 24AWG conductors twisted together to form 4 pairs with varying lay lengths. Cables are fitted with plastic strain relief boots, for applications that may require continuous patching or a degree of stress relief applied.
_1600px.jpg)
_1600px.jpg)
Key features
Cat5e compliant
Independently verified, T568B wiring
Supports Gigabit ethernet

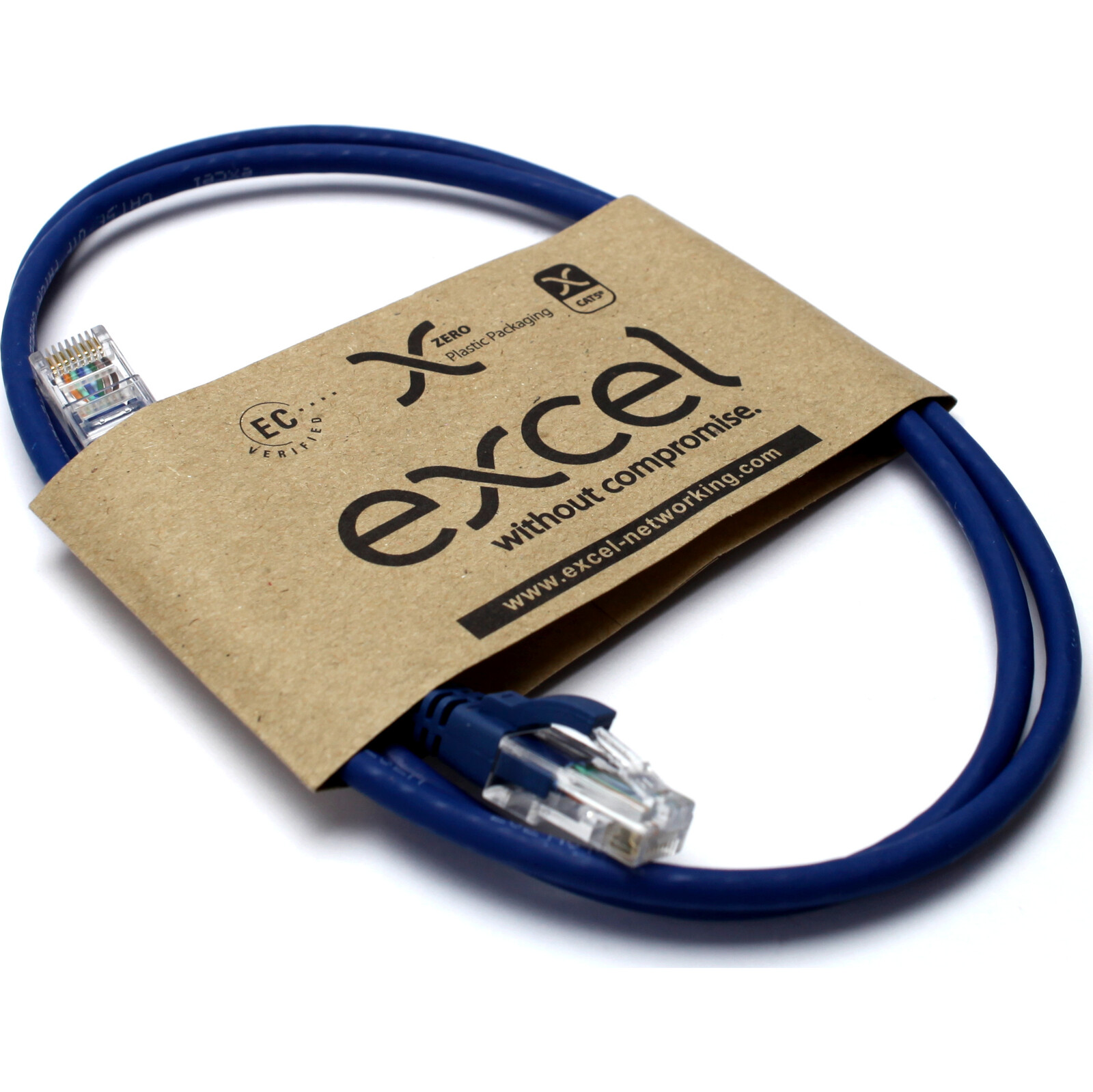

Choice of colours, individually packaged
Blade style 'slimline' moulded strain relief boot with clip protector
LS0H outer sheath
compatibility:
CIBSE TM65 Embodied Carbon: 0.388 kg CO2e
Cable type
U/UTP
Category
5E
Length
2 m
Type of connector connection 1
RJ45 8(8)
Type of connector connection 2
RJ45 8(8)
Outer sheath colour
Blue
Strain relief boot
Moulded-on
Lockable
no
Strain relief boot colour
Blue
Flame retardant version
yes
Cable construction
1x4
AWG-size
24
Pin assignment
1:1
