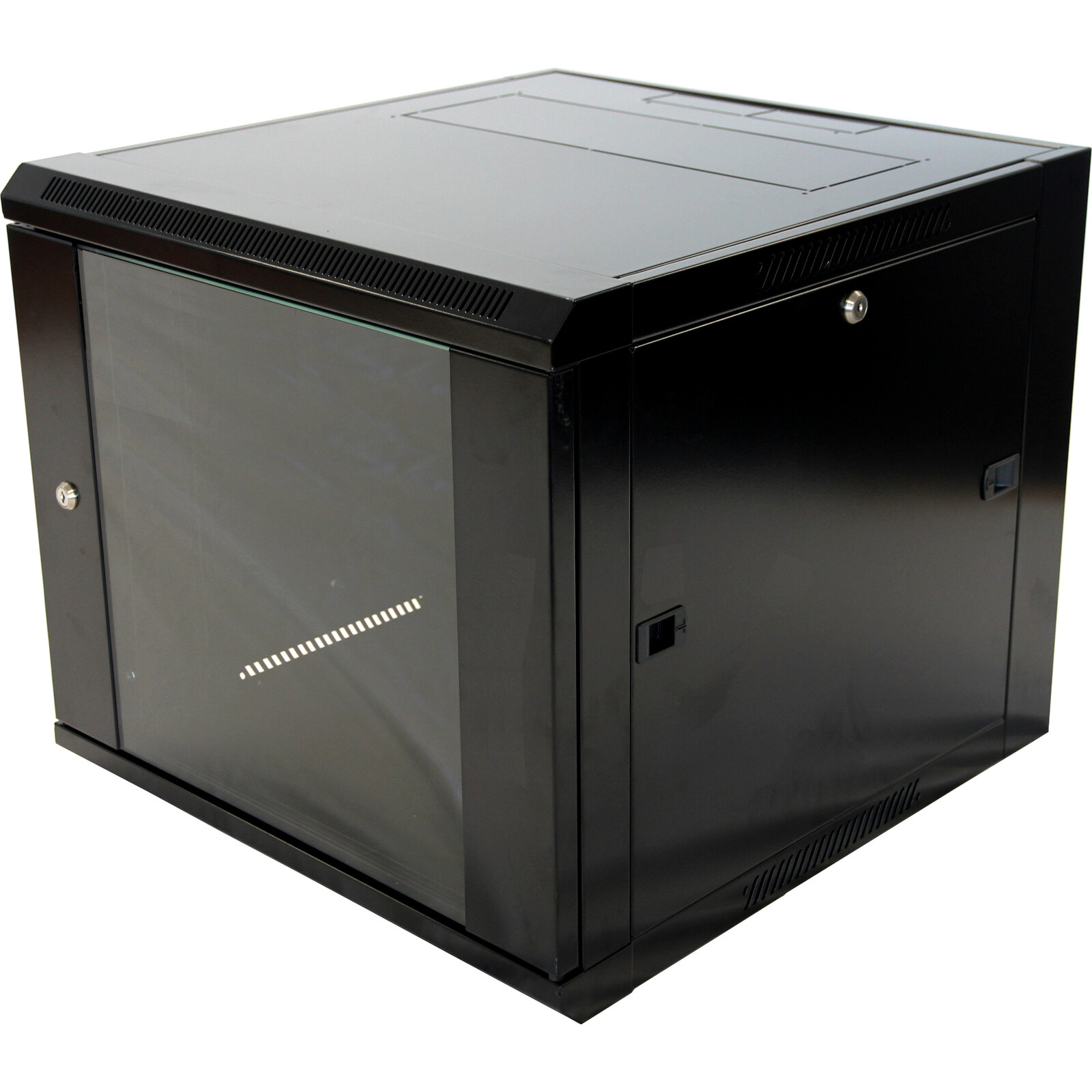

Excel WR390 Wall Rack Network Data Cabinet 9U 390 mm Deep Black
Excel Environ WR390 Wall Rack Network Data Cabinet 9U WxD 570 mm x 390 mm Black, part of a huge range of Network Data Cabinets available from Mayflex. The Excel Environ WR is a range of wall-mounted 570 mm wide racks designed for the installation of both cabling and equipment. The WR series of Wall Racks is available in depths of 390 mm, 500 mm and 600 mm and is suitable for multiple applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment.
Key features
Choice of depths available (390 mm, 500 mm, 600 mm)
Available in Black or Grey

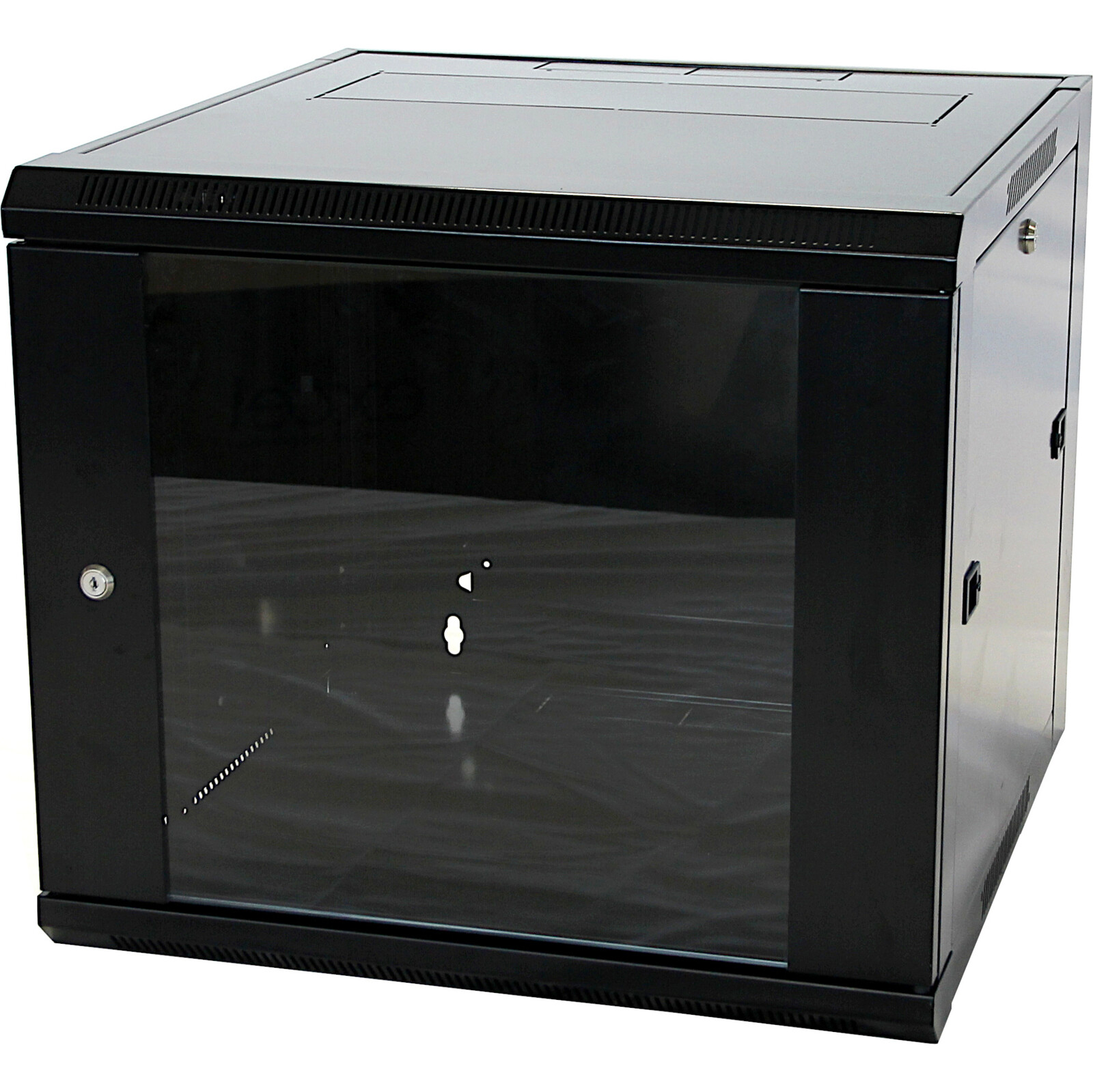

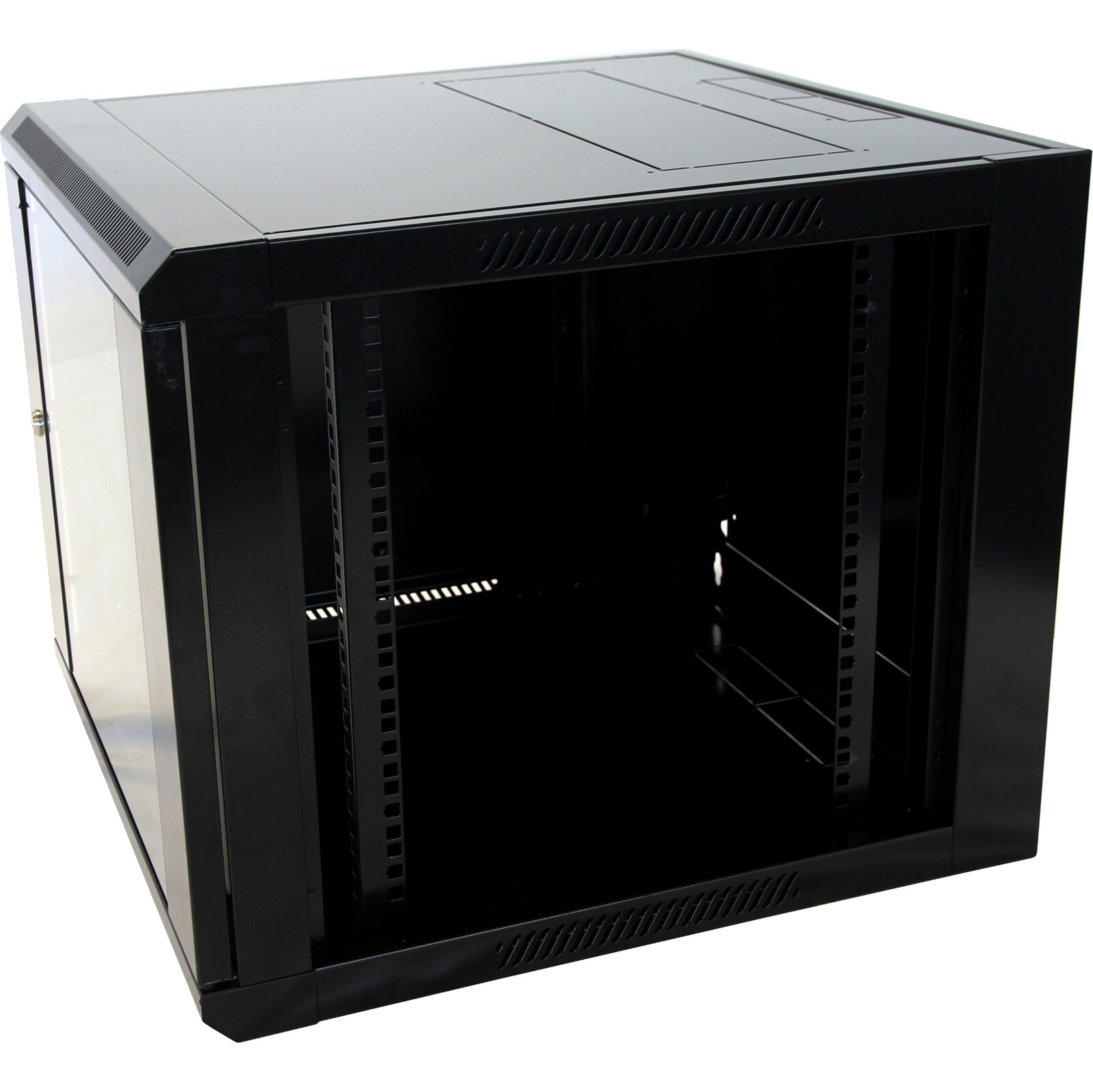

Aesthetically pleasing framed safety glass front door (IK08 Glass doors)

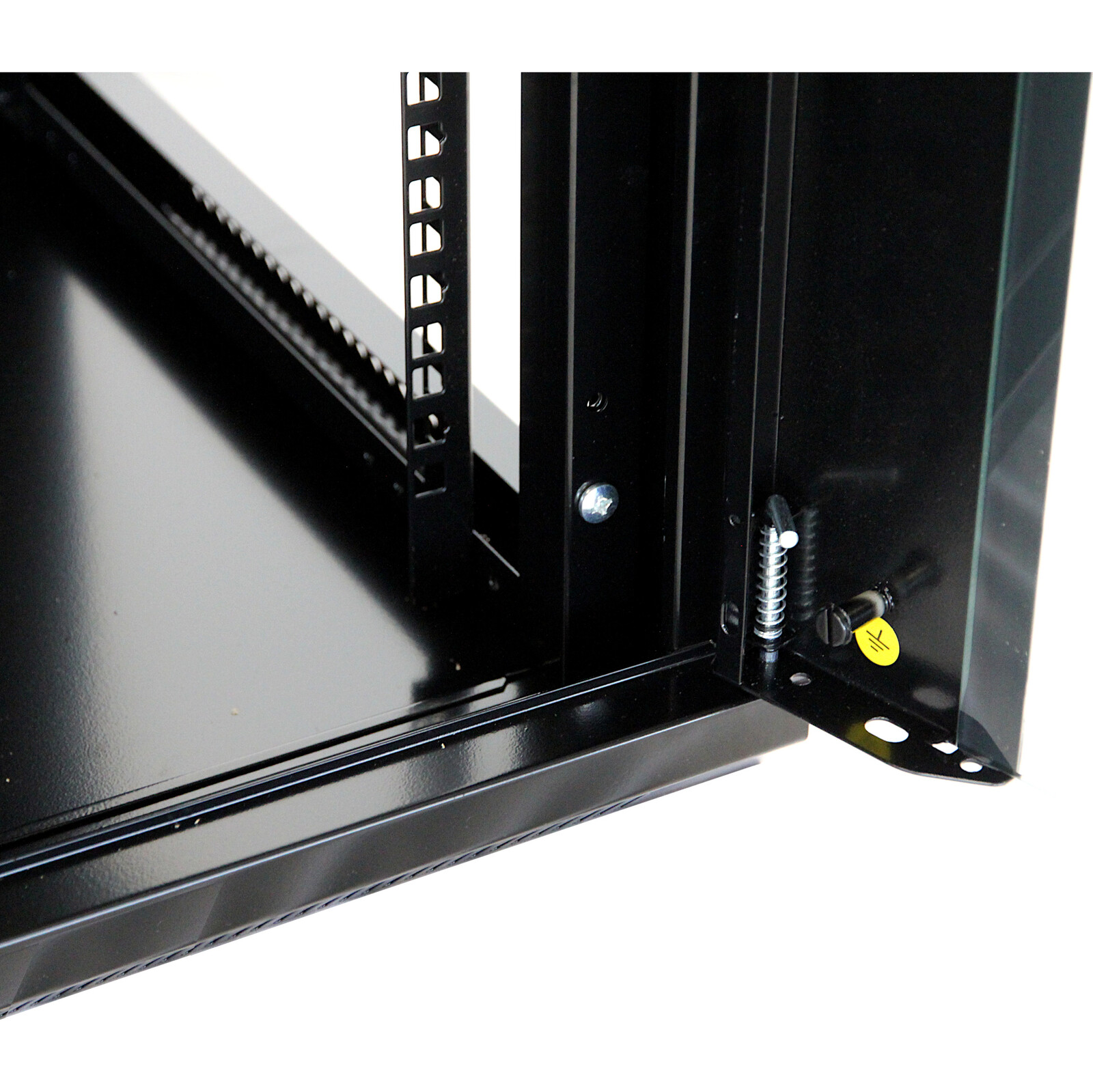

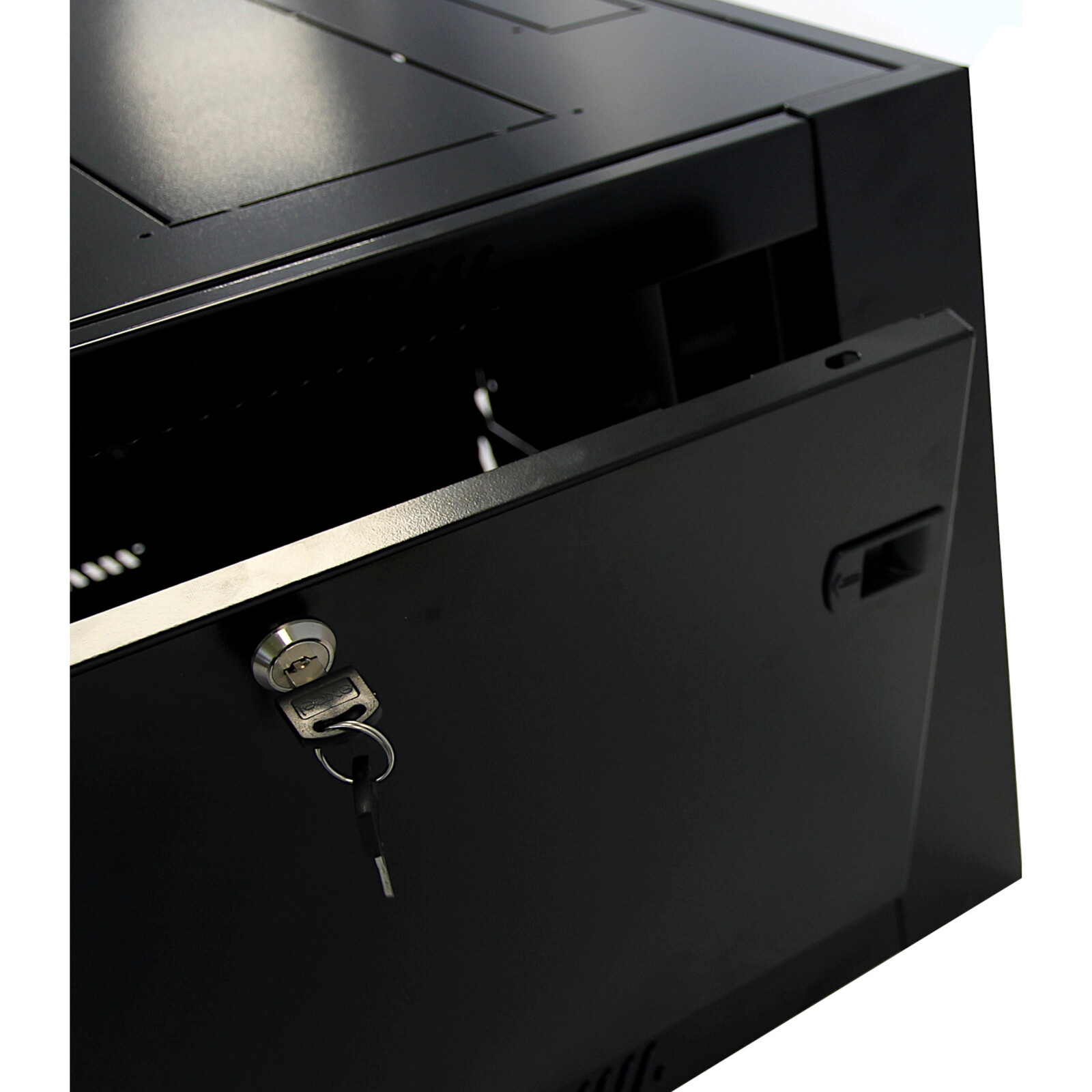

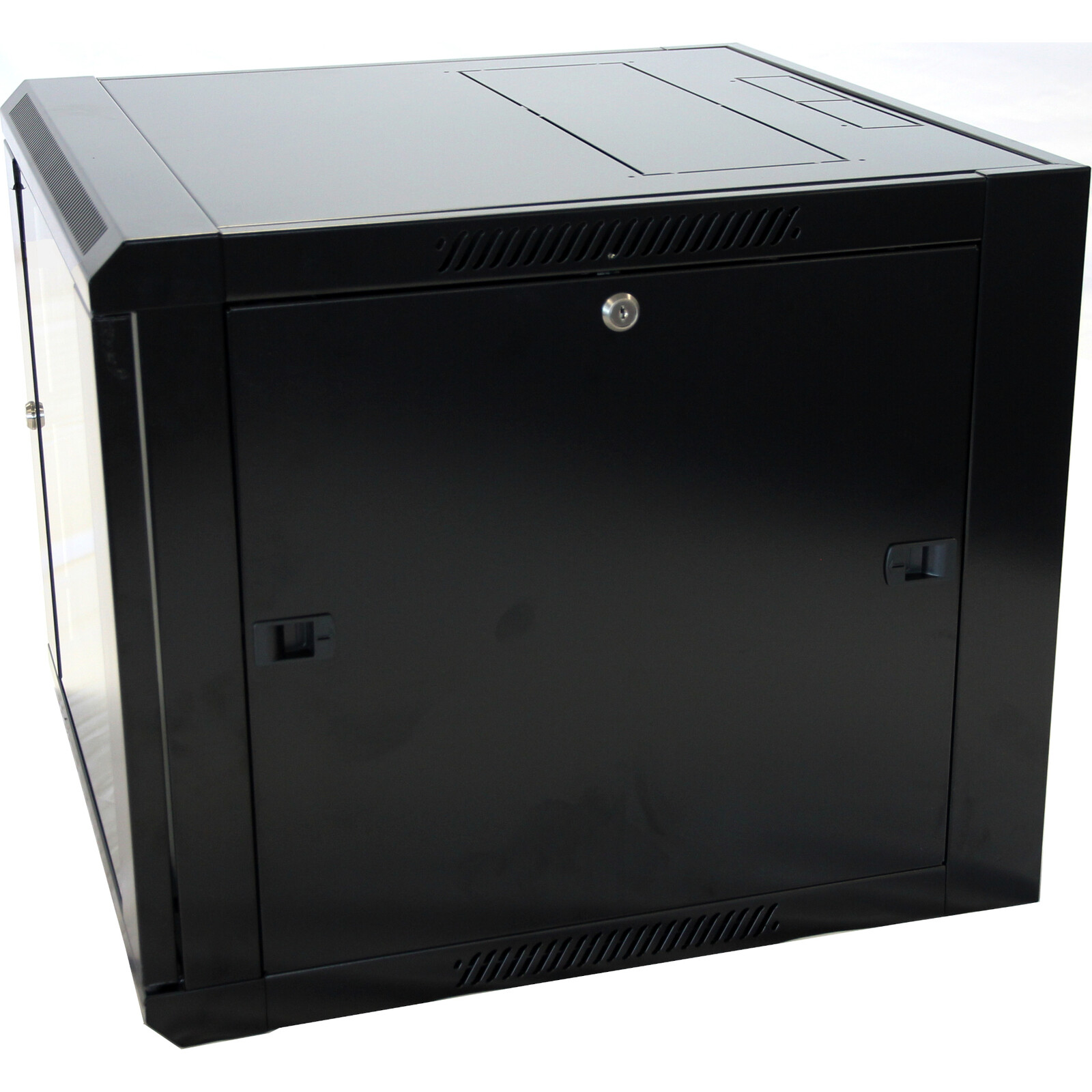

Quick release doors and side panel

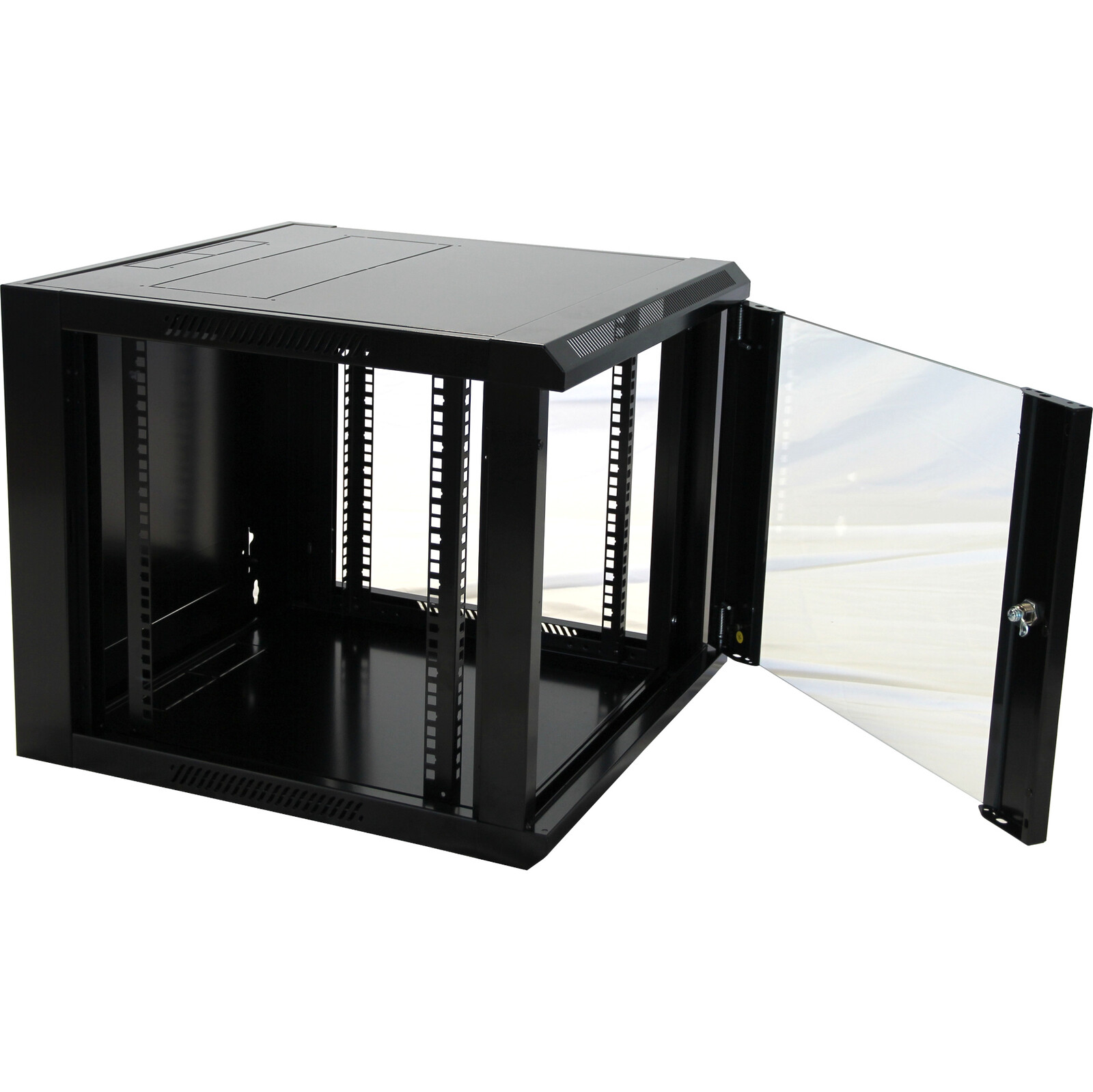

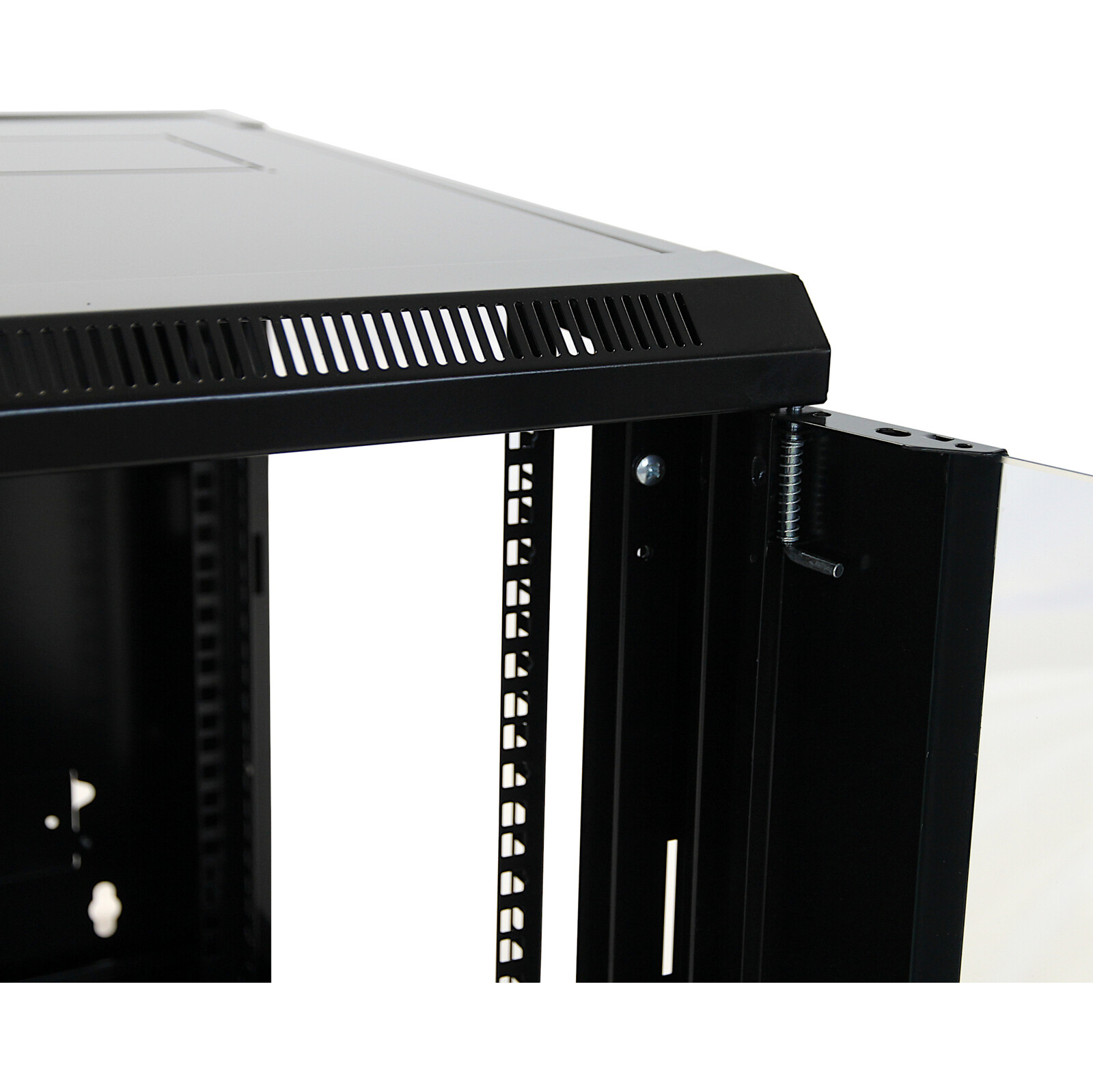

Adjustable front and rear 19'' mounting profiles

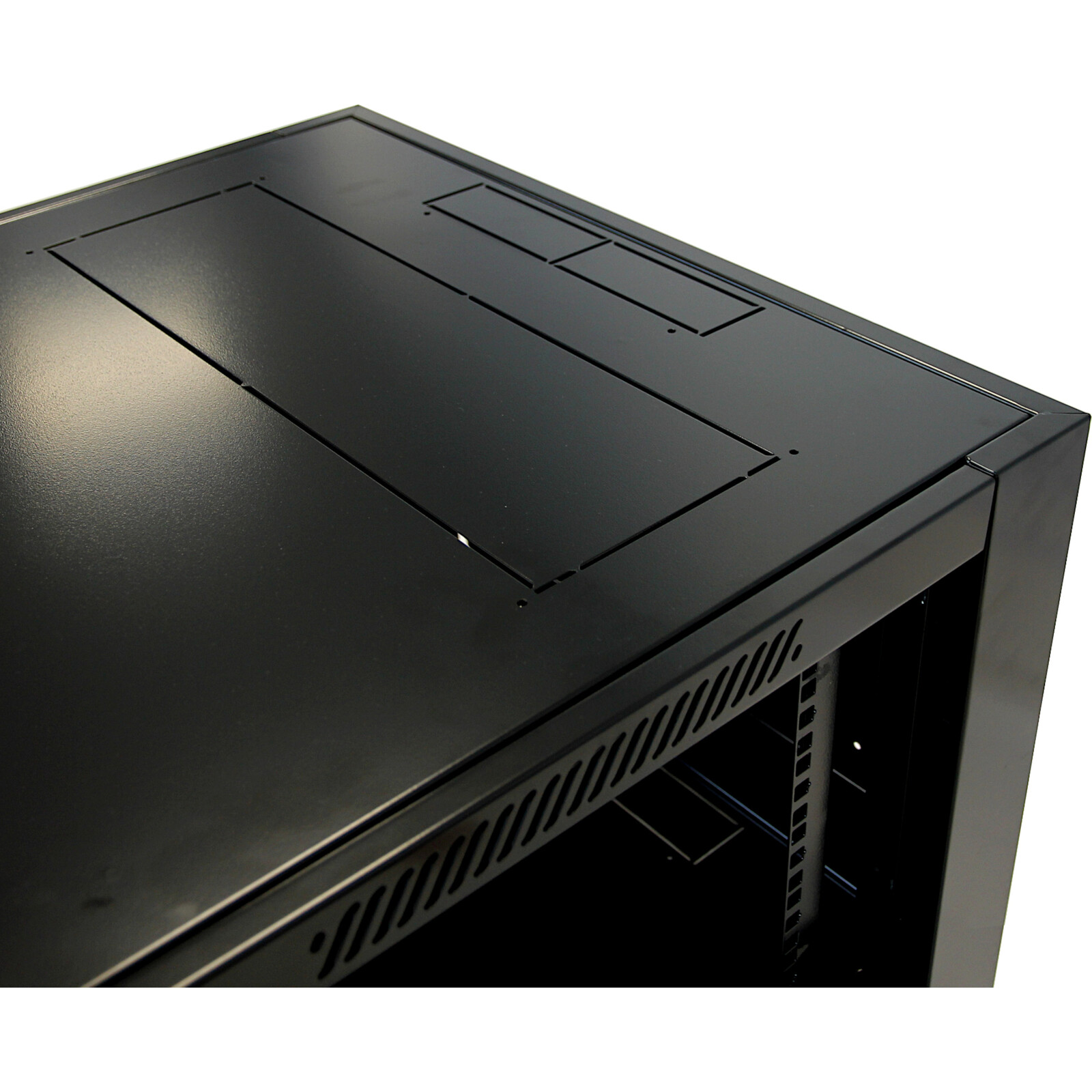

Removable cable entry panel in top and base
compatibility:
CIBSE TM65 Embodied Carbon: 100.285 kg CO2e
Mounting Profile
Front and rear
Model
With permanent frame
Type of profile rail
L-shaped
Number of doors
1
Type of ventilation
Passive
Width
570 mm
Height
501 mm
Depth
390 mm
Modular spacing
19 inch
Number of rack units (RU)
9
Max. load capacity
60 kg
With roof plate
yes
With earthing
no
With front door
yes
Side panels included
yes
Flat-packed
no
Material
Steel
Type of surface
Powder coated
Colour
Black
RAL-number
9004
IP-rating
IP20
