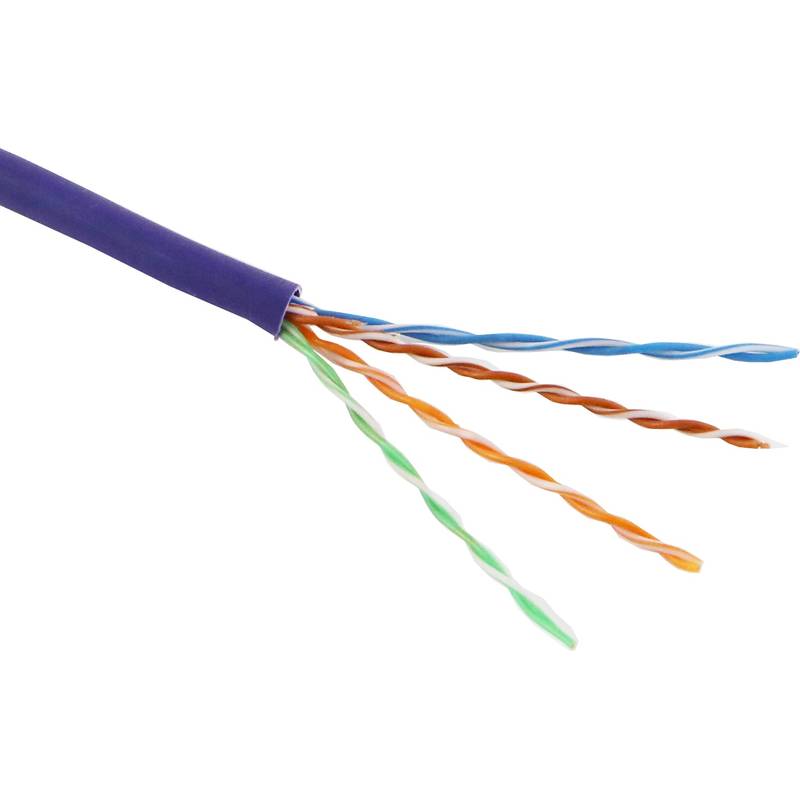

Excel Category 5E Cable U/UTP Dca LS0H 305m Box - Violet
Part Code: 100-066
Excel Category 5e Unscreened Cables are manufactured and tested to the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards for enhanced performance Category 5 cables. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths.
The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.
- Choice of colour
- Supports Gigabit Ethernet
- Fast feed box
- Sequential metre markings
- Euroclass Dca-s2-d2-a2
Category | 5E |
Overall screening | None |
Conductor screening | None |
Outer sheath colour | Violet |
Reaction-to-fire class according to en 13501-6 | Dca |
Smoke development class according to en 13501-6 | s2 |
Euro class flaming droplets/particles according to en 13501-6 | d2 |
Euro class acidity according to en 13501-6 | a2 |
Awg-size | 24 |
Specification core insulation | PE |
Core identification | Colour |
Outer sheath material | Copolymer, thermoplastic (LS0H) |
Halogen free (acc. en 60754-1/2) | yes |
Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
Low smoke (acc. bs en 61034-2) | yes |
Outer diameter approx. | 5.2 mm |
Operating temperature range | -20...60 °C |
Nvp value | 70 % |
Conductor category | Class 1 = solid |
Total number of cores | 8 |
Stranding element | Pairs |
Conductor surface | Bare |
Key Features
- Category: 5E
- Overall screening: None
- Conductor screening: None
- Outer sheath colour: Violet
- Reaction-to-fire class according to en 13501-6: Dca
- Smoke development class according to en 13501-6: s2
