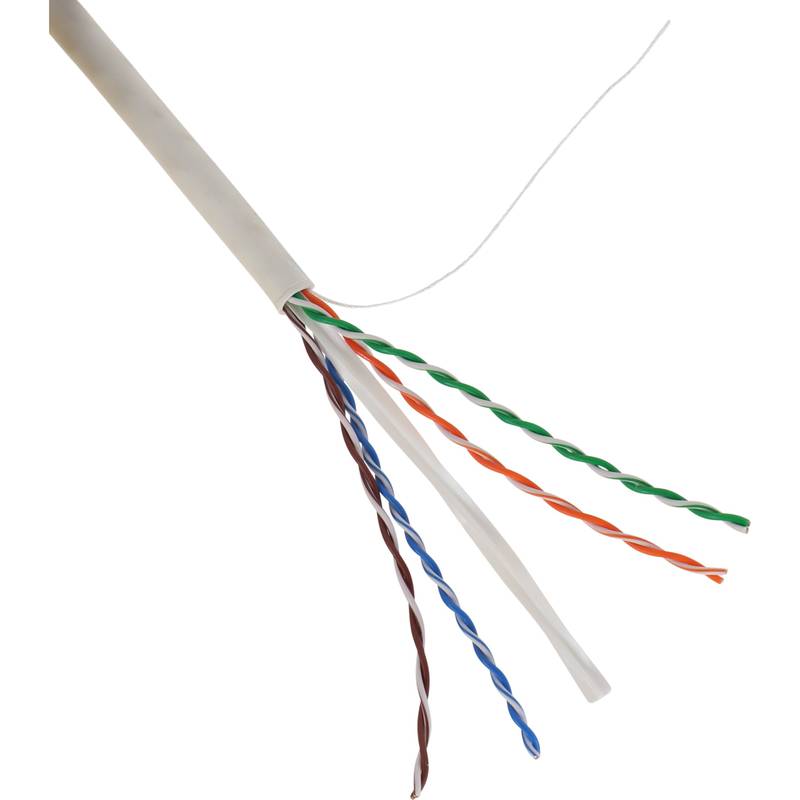

Excel Solid Cat6 Cable U/UTP LSOH CPR Euroclass B2ca 305 m Box White
Part Code: 190-074
Excel solid Cat6 ethernet cable U/UTP LSOH CPR Euroclass B2ca manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Cat 6 specifications, 100m, 305m or 500m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.
These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.
- Cat6 Solid Copper Cable
- U/UTP No Overall Screening
- No Conductor Screening
- Outer sheath colour White
- Reaction-to-fire class according to EN 13501-6: B2ca
- Smoke development class according to EN 13501-6: s1a
| Conductor surface | Bare |
| Diameter of conductor | 0.55 +/-0.01 |
| Awg size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Core insulation | Solid HDPE |
| Specification core insulation | PE |
| Core identification | Colour |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | White |
| Reaction-to-fire class according to en 13501-6 | B2ca |
| Smoke development class according to en 13501-6 | s1a |
| Euro class flaming droplets/particles according to en 13501-6 | d0 |
| Euro class acidity according to en 13501-6 | a1 |
| Halogen free (acc. en 60754-1/2) | yes |
| Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
| Low smoke (acc. bs en 61034-2) | yes |
| Outer diameter approx. | 6.2 mm |
| Installation temperature range | -10...60 °C |
| Operating temperature range | -10...60 °C |
| Category | 6 |
| Nvp value | 69 % |
Key Features
- Conductor surface: Bare
- Diameter of conductor: 0.55 +/-0.01
- Awg size: 23
- Conductor category: Class 1 = solid
- Total number of cores: 8
- Stranding element: Pairs
